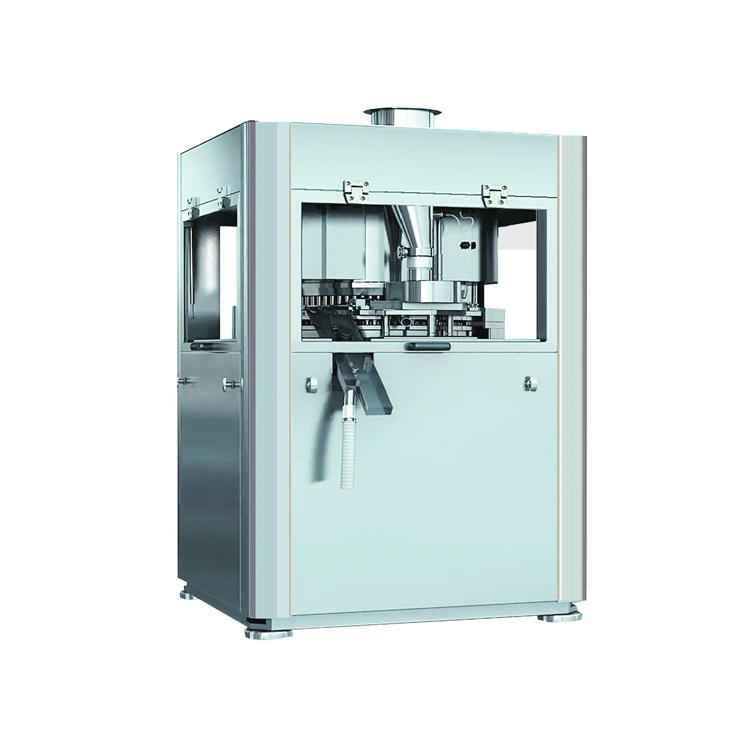

ZPY226PLC Series Rotary Tablet Press
U7彩票
Applications:
The machine is a single-press type. The outside part of the machine is fully enclosed. It is up to GMP.
Install pre-pressure, main-pressure.
Main shaft drive, the speed is adjusted by Frequency Conversion.
Advanced turbine retard.
There are thrust shaft, lubricate shaft on turret.
Numerical Show
A . Show present main pressure (Max. pressure 60 KN)
B . Show present tablet thickness
C . Show present f1ll1ng
D . Show present pre-pressure roller seat
E . Show present pressure of exit tablets (Max.10 KN)
F . Show present speed of turret
Touching type operation push button.
Protecting and 「eport1ng function
A . Protecting and reporting for motor breakdown
B . Protecting and reporting for exceed pressure
C . Protecting and reporting for loading and unloading lower punches
D . Emergency stopping function
技术参数 Technical parameters
|
参数 |
Data |
ZP24 |
ZP16 |
ZP10 |
ZP8 |
|
冲模数 |
Dies (sets) |
24 |
16 |
10 |
8 |
|
最大主压片力 |
Max.Major Pressure (kn) |
60 |
|||
|
最大预压片力 |
Max-pre-pressure(kn) |
10 |
|||
|
最大压片直径 |
Max Dia.of Tablet (mm) |
11 |
13 |
18 |
25 |
|
最大压片厚度 |
Max. Thickness of Tablet (mm) |
8 |
|||
|
最大填充深度 |
Max. Depth of Filling (mm) |
16 |
|||
|
转台转速 |
Turret Speed (r/min) |
40 |
|||
|
生产能力 |
Production Capacity (pc/h) |
11000-41400 |
8100-30600 |
3800-8400 |
|
|
中模直径 |
Diameter of Die (mm) |
22 |
30.16 |
38.1 |
|
|
中模高度 |
Hight of Die (mm) |
22.22 |
23.8 |
||
|
冲杆直径 |
Dia. Of Punch (mm) |
19 |
25.35 |
||
|
冲杆长度 |
Length of Punch (mm) |
133.35 |
|||
|
上冲进模深度 |
Upper punch into die depth range(mm) |
2-6 |
|||
|
主电机功率 |
Motor Power (kw) |
2.2 |
|||
|
外形尺寸 |
Overall Size (mm) |
540x520x1600 |
|||
|
重 量 |
Weight (kg) |
850 |
|||
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

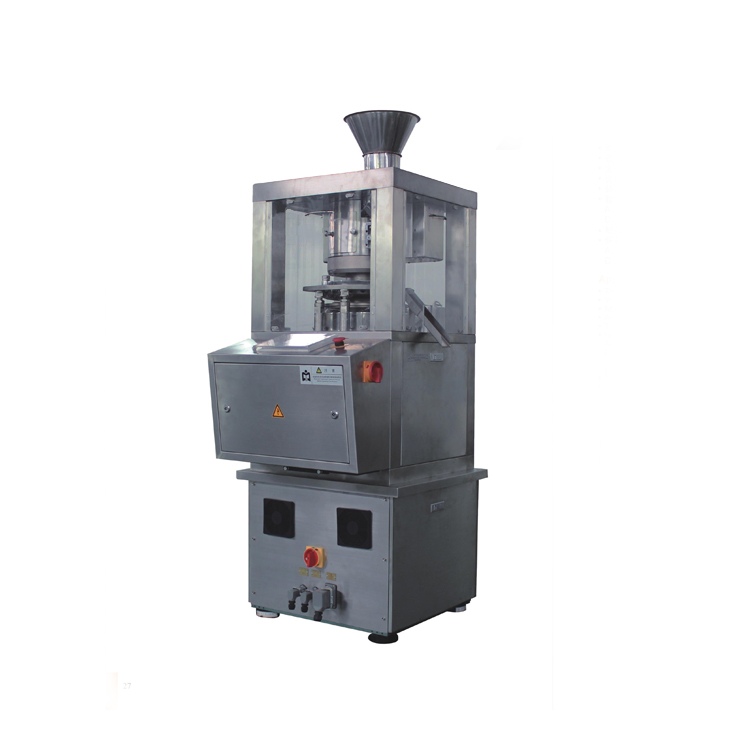

ZPSS226 Double Color Rotary Tablet Press
This machine is a single-press type, continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
Learn More

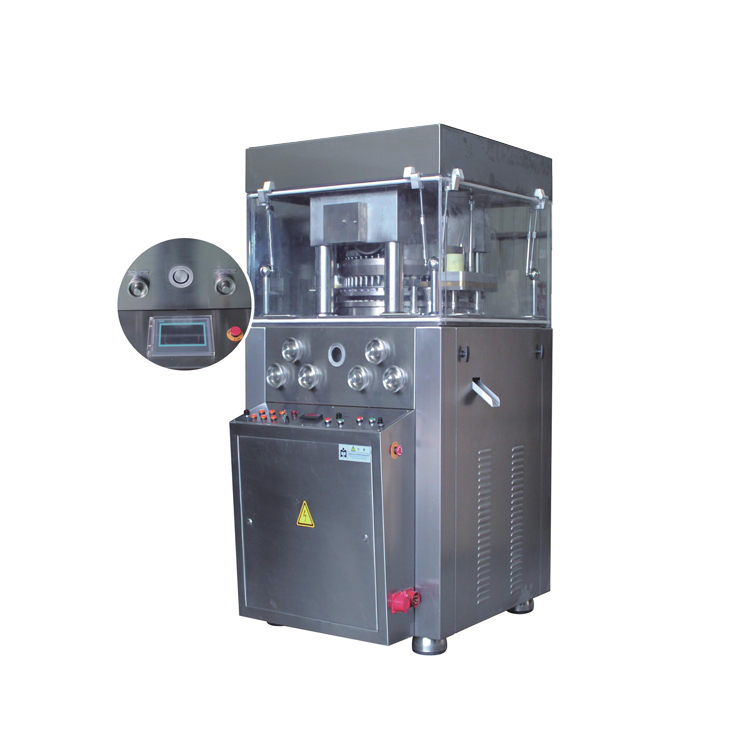

Anti Rust Function Pharmaceutical Equipment Rotary Type Tablets Press Machine
