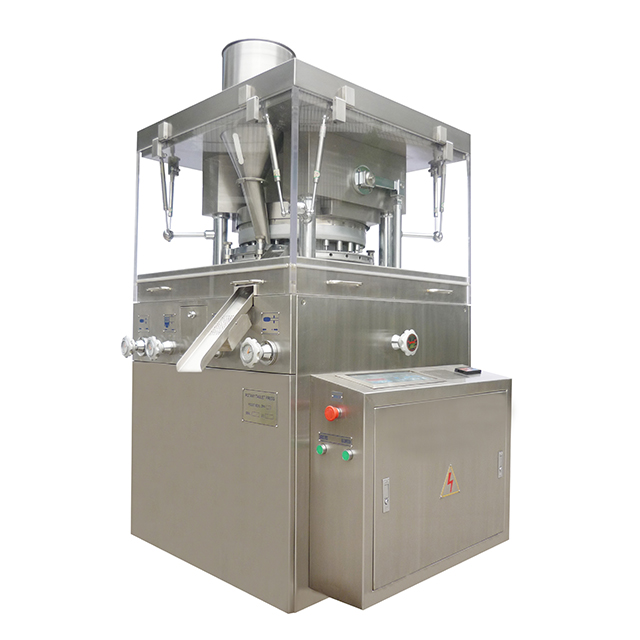

Anti Rust Function Pharmaceutical Equipment Rotary Type Tablets Press Machine
The machine is a single press type,continuous automatic tablet press machine for pressing granular raw materials into tablets.Rotary tablet press is mainly used in pharmaceutical,chemical,food electronic, plastic and metallurgical industries.Machine for precision machined stainless steel made of aluminum alloy bracket for the upper and lower independent
That machine is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Features:
1. The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.2. It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.3. It is adopts the import Frequency Timing with Electromagnetism Clutch.4. Driving system is equipped with oil box and running under oil, easy for heat dissipation and wear-resistance.5. It is equipped with Dust Collector as well, which avoid the dust emission, and recycle to save dust
Main Technical Data:
| Stations (unit) | 31 | Thickness of the die (mm) | 28 |
| Maximum compression (KN) | 80 | The diameter of the circle of the central pitch of upper &lower punches on the turret | 320mm |
| Max. Diameter of tablet to be produced (mm) | 13 | Rotary speed of the turret (rpm) | 10-35 |
| Max. Filling depth (mm) | 15 | Capacity of the tablets (tablets/hour) | 150,000 |
| Max. Thickness of tablet (mm) | 6 | Area to occupy (mm 2 ) | 1500*1300*1650mm |
| Diameter of the upper/lower shank (mm) | 32 | Height of the machine (mm) | 1650 |
| Length of the upper shank (mm) | 175 | motor power (kw) | 3 |
| Length of the lower shank (mm) | 183 | Net weight of the machine (kg) | 1.8 |
| Diameter of the die (mm) | 36 |
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
High Speed Rotary Pill tablet press machine making pharmaceutical
U7彩票High quality machines are based on advanced and reasonable design. New design GZPK370 series high speed tablet press is developed on the basis of years manufacture expertise with it’s excellent standardization and modularity in series.
Learn More
Plastic Electronic Rotary Tablet Press Machine Pill Maker CE Certified
Tablet Equipment is a double press automatic rotation can be equipped with force-feeding system for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More
DP Serits lptd Single Punch Tablet Press
This model is a IPDT single station press that is specially designed for used in labo ratory of production in small batches. It can press all kinds of granular materials into round tablets. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adiustable . The oute rappearance of the machine is well designed with a compact structure. It features a number of advantages such as reasonable layout, small dimension and large pressure. It is a small size equipment that Compliance with GMP requirements.
Learn More
