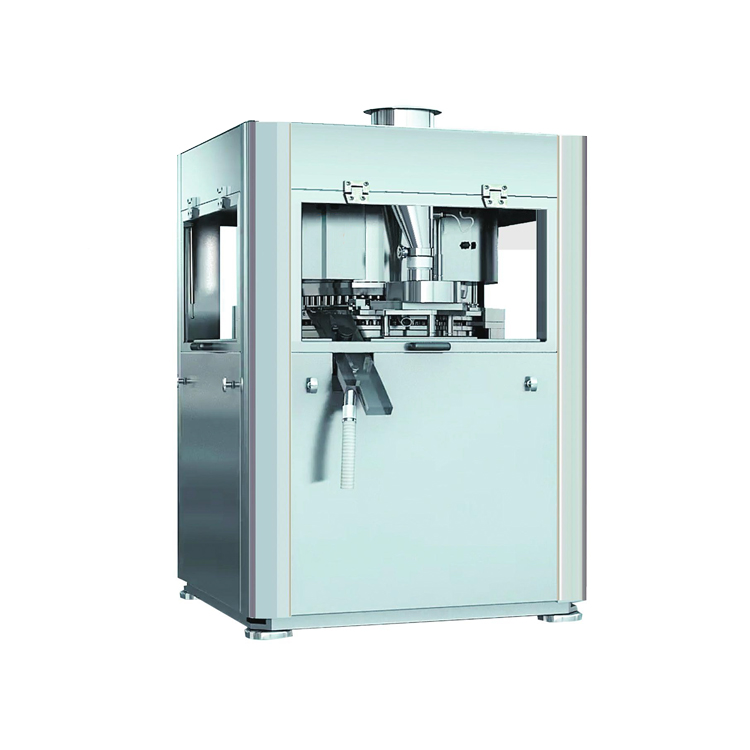

GZPK-720 Automatic Double Discharging High-speed Tablet Press
Characteristic
No hand wheel, system control adjustment
Fully automatic centralized lubrication system
Special oil, dust and noise prevention system
High definition, isolated window design

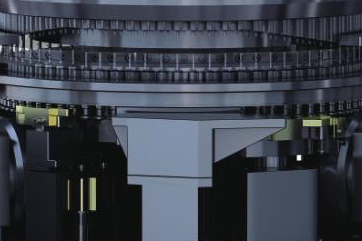

Pressing chamber 360° without dead angle full opening structure, cleaning operation, easy maintenance
Unique four-column frame structure ensures mechanical stability and durability
The heat treatment process of the plate is synchronized with the international and has a long life.
Main features: (CGMP traceable models have the features)
PLC control with automatic protection (overpressure, overload, emergency stop)

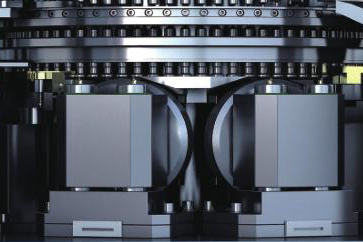

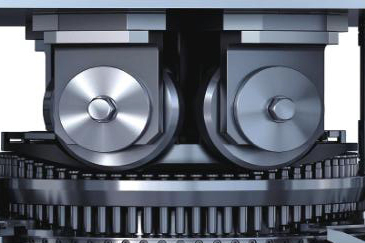

Double pressure type, fully enclosed structure
Frequency adjustment
Man-machine interface, easy to operate and friendly
Digital display main pressure, sheet force, tablet thickness, fill depth and speed
CE configuration options
With pressed tablet data screen printing function
Technical parameters
|
参数 |
Data |
GZPK-51 |
GZPK-65 |
GZPK-83 |
GZPK-99 |
|
冲头数 |
No. of stations |
51 |
65 |
83 |
99 |
|
产量范围（片/小时） |
Output range (Tablet s/h) |
47000-470000 |
62400-624000 |
79600-796000 |
95000-950000 |
|
转速范围（转/分钟） |
Rotation speed range (rpm) |
8-80rpm |
|||
|
主压力 |
Main pressure |
100KN |
|||
|
预压力 |
Pre-pressure |
||||
|
冲具型式 |
Tooling type |
D |
B |
BB |
TF-16 |
|
最大片径 |
Max tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
异型片最大长度 |
Max length of irregular tablet |
25mm |
19mm |
16mm |
11mm |
|
冲模直径 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
24mm |
|
最大填充深度 |
Max filling depth |
20mm |
18mm |
18mm |
18mm |
|
主电机功率 |
Main motor power |
11kW |
|||
|
冲杆直径 |
Diameter of punch |
25.35mm |
19mm |
16mm |
|
|
重量 |
Weight |
5500kg |
|||
|
主机外形尺寸 |
Dimension of machine |
1300 x 1300 x 2000mm |
|||
|
电控柜外形尺寸 |
Dimension of control cabinet |
890 x 500 x 1200mm |
|||
