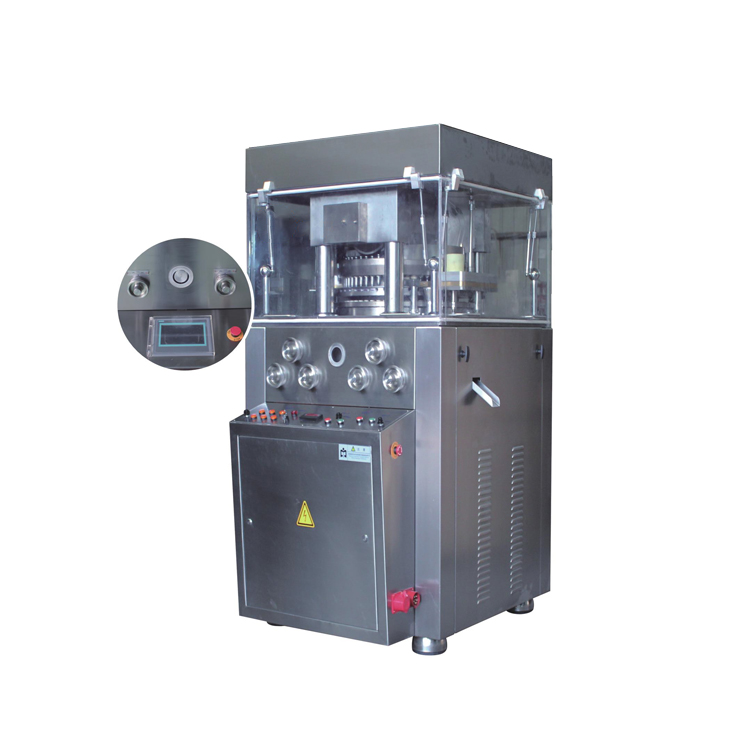

GZPK580i Series Double Discharging High-speed Rotary Tablet Press
The machine is a double-press type continuous automatic rotary tableting machine, mainly used in the pharmaceutical industry, tablet production, and also the chemical, food, electronics, plastics, metallurgy and other industrial sectors
Fully enclosed compression compartment, structure and material are in compliance with GMP requirements
With pre-pressure function
Man-machine interface, touch screen operation, easy to operate, with a self- diagnostic function point of failure
Figures show the main pressure, tablet thickness, filling depth andspeed
Electronic overload die
Automatic lubrication system
Technical parameters
|
参数 |
Date |
GZPK580i |
|||
|
冲模数 |
Quantity of Punch & Die (set) |
39 |
47 |
57 |
61 |
|
冲模型式 |
Tooling type |
IPT25 35 |
IPT19 |
IPT19 |
IPT19 |
|
最大生产能力 |
Max Production Capacity (pc/h) |
22464-224640 |
27072-270720 |
32032-320320 |
35136-351360 |
|
最大主压片力 |
Max Ma,n Pressure (kn) |
100 |
100 |
100 |
100 |
|
最大预压压力 |
Max Pre- pressuer(kn) |
30 |
30 |
30 |
30 |
|
最大压片直径 |
Max Tablet Diameter(mm) |
25 |
18 |
14 |
11 |
|
最大充填深度 |
Max.Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
转台转速 |
Rotation Floor Speed (r/min ) |
5-48 |
5-48 |
5-48 |
5-48 |
|
电机功率 |
Motor Power (kw) |
75 |
75 |
75 |
75 |
|
外型尺寸 |
Overall Size (mm) |
1050 x 1400 x 2160 (包括莹灯） |
|||
|
重 量 |
Weight (kg) |
3000 |
|||
