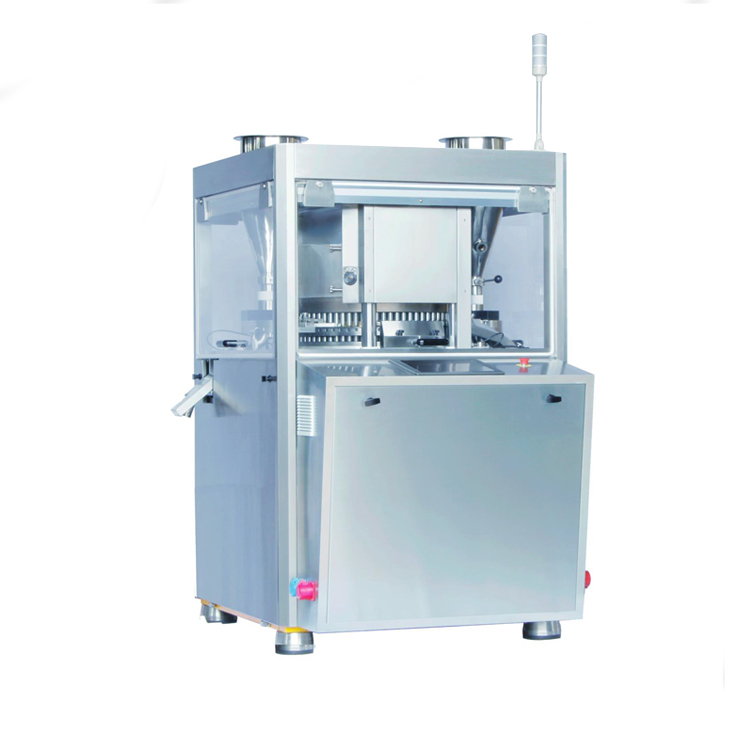

GZPK-720i Automatic Double Discharge High-speed Tablet Press
U7彩票

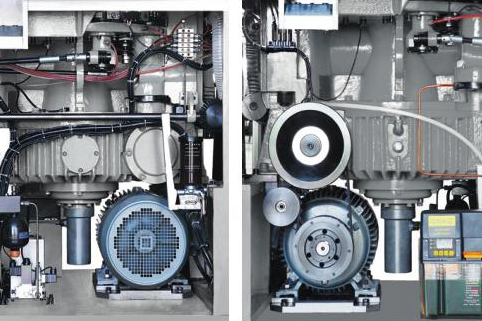

Imported hydraulic pump unit sustains main pressureand prepressure, process of pressing goes smoothly
with low noise;
Equipped with protective unit of overloading, auto stopped while pressure overloaded.
An easy disassembled structure has high maintainability.
Force-feeding device controls the flow of powder and ensures the accuracy of feeding.
Feeder is easy to be disassembled, and the platform is easy to be regulated.
No dead area in press chamber and easy to be abserved and cleaned.
Technical parameters
|
参数 |
Data |
GZPK-51 |
GZPK-65 |
GZPK-83 |
|
冲头数 |
No. of stations |
51 |
65 |
83 |
|
冲模类型 |
Tooling type |
D |
B |
BB |
|
产量范围（片/小时） |
Output range (Tablet s/h) |
61200-612000 |
62400-624000 |
79600-796000 |
|
转速范围（转/分钟） |
Rotation speed rang (rpm) |
8-80rpm |
||
|
主压力 |
Main prssure |
100KN |
||
|
预压力 |
Pre-pressure |
16KN |
||
|
最大片径 |
Max. tablet diameter |
25mm |
16mm |
13mm |
|
异形片最大长度 |
Max. length of irregular tablet |
25mm |
19mm |
16mm |
|
冲模直径 |
Diameter of die |
38.1 mm |
30.16mm |
24mm |
|
最大填充深度 |
Max. filling depth |
20mm |
20mm |
16mm |
|
冲杆直径 |
Diameter of punch |
25.35mm |
19mm |
19mm |
|
冲头长度 |
Length of punch |
133.6mm |
||
|
冲头所在圆周直径 |
Pitch circle diameter |
720mm |
||
|
主电机功率 |
Main motor power |
11kW |
||
|
重量 |
Weight |
3380kg |
||
|
外形尺寸 |
Dimension |
1294 x 1500 x 2000mm |
||
