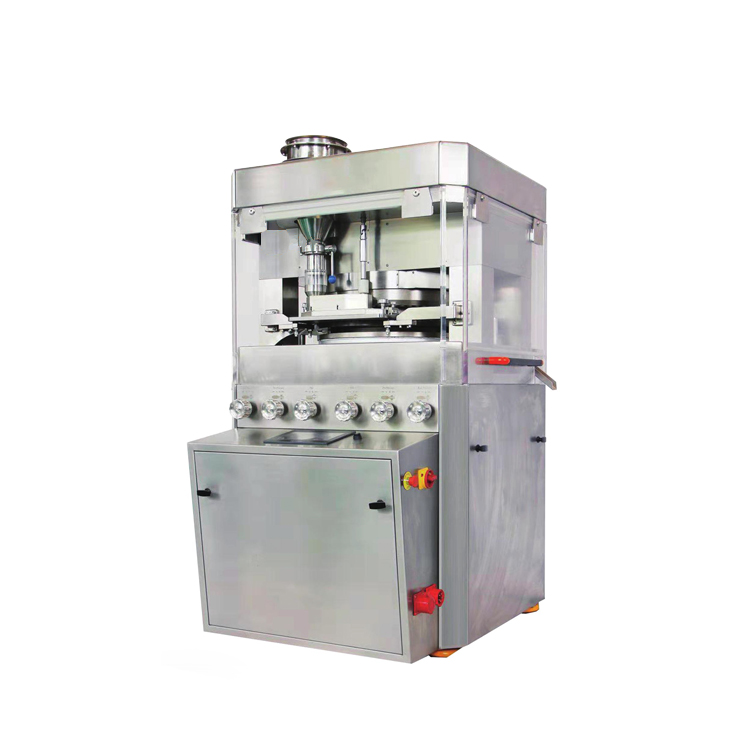

GZP-540 Double Discharge Tablet Press
U7彩票 GZPK540 series rotary tablet press is a series of products. Mainly used in the pharmaceutical industry, but also in the chemical, food, electronics and other industries. It can produce round pieces of various specifications, special shaped shaped pieces and double-sided lettering pieces.
Product Description
GZPK540 series rotary tablet press is a series of products. Mainly used in the pharmaceutical industry, but also in the chemical, food, electronics and other industries. It can produce round pieces of various specifications, special shaped shaped pieces and double-sided lettering pieces.
Main Feature
Quasi-high speed, double film, ZP61 production can reach 350,000.
The maximum main pressure can reach 100KN, and the maximum pre-pressure is 30KN, which is higher than other ordinary rotary tablet presses.
After industrial design, the appearance is novel and beautiful, and generous and simple.
It meets GMP requirements, compact structure, reliable performance, easy operation, and quick cleaning and replacement.
Man-machine interface, friendly and convenient operation. It has a sheet thickness display and a fill display.
Thin oil lubrication uses an advanced volumetric lubrication system. Make the oil supply of each lubrication point more accurate and reliable.
Disassemble the convenient forcing feeder.
Technical parameters
|
参 数 |
Data |
ZP61 |
ZP57 |
ZP47 |
ZP39 |
|
冲模数 |
Stations |
61 |
57 |
47 |
39 |
|
冲具型式 |
Model |
EU19 BBS |
TSM19 (EU19) BB |
TSM19 (EU19) B |
TSM19 (EU19) D |
|
最大片径 |
Max.Tablet Diameter (mm) |
11 |
14 |
18 |
25 |
|
最大转台转速 |
Max.Rotation Speed (r/min) |
5- 48 |
|||
|
最大产量 |
Tablets/h |
35136- 351360 |
32032- 320328 |
27027- 270720 |
22464- 224640 |
|
最大主压力 |
Max. Main Pressure (kn) |
100 |
|||
|
最大预压力 |
Max. Pre-pressure (kn) |
30 |
|||
|
工作电压 |
Voltage (v/hz) |
AC 380/50 |
|||
|
主电机功率 |
Main Motor Power (kw) |
7.5 |
|||
|
机器占地面积 |
Machine Area (mm) |
1300 X 1100 |
|||
|
机器高度 |
Machine Height (mm) Alarming light included |
2160 |
|||
|
机器重量 |
Machine Weight (kg) |
3000 |
|||
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

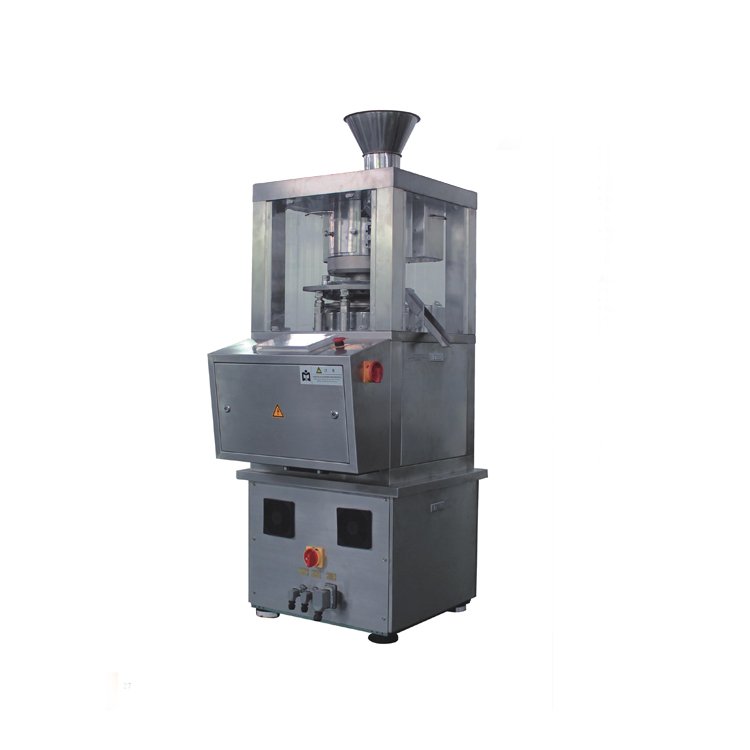

ZPS226D Series Double Color Rotary Tablet Press
