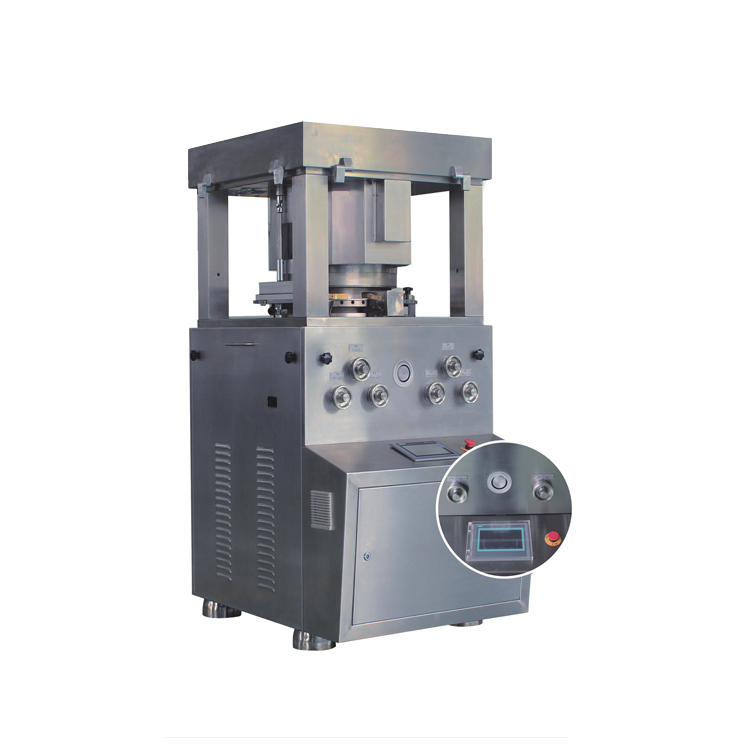

GZP420i Double Discharging Rotary Tablet Press
Equipment performance
Has a preloading function
Adopts PLC programmable control
Man-machine interface, easy to operate Shows the main pressure, fillling volume, slice thickness, speed, output
With overpressure alarm function
Using quantitative lubricating function
Feeding methods, forced feeder
Tablet pressing chamber meet GMP requirements
Technical parameters
|
参数 |
Data |
GZP29i |
GZP37i |
GZP39i |
GZP45i |
|
冲杆直径 |
Punch Diameter (mm) |
26 |
22 |
22 |
10 |
|
最大压片直径 |
Max Tablet Diameter (mm) |
22 |
12 |
12 |
10 |
|
最大转速 |
Max Rotation Speed (r/min) |
40 |
40 |
40 |
40 |
|
最大填充深度 |
Max Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
最大产量 |
Max Production Capacity (pc/h) |
139200 |
177600 |
187200 |
216000 |
|
最大主压力 |
Max Main Pressure (kn) |
80 |
80 |
80 |
80 |
|
最大预压力 |
Max Pre- pressure (kn) |
15 |
15 |
15 |
15 |
|
主电机功率 |
Main Motor Power (kw) |
4KW |
4KW |
4Kw |
4Kw |
|
设备占地面积 |
Machine Area (mm) |
850x 1100 |
850x1100 |
850x 1100 |
850x1100 |
|
设备高度 |
Machine Height (mm) |
1750 |
1750 |
1750 |
1750 |
|
设备重量 |
Machine Weight (kg) |
2050 |
2050 |
2050 |
2050 |
