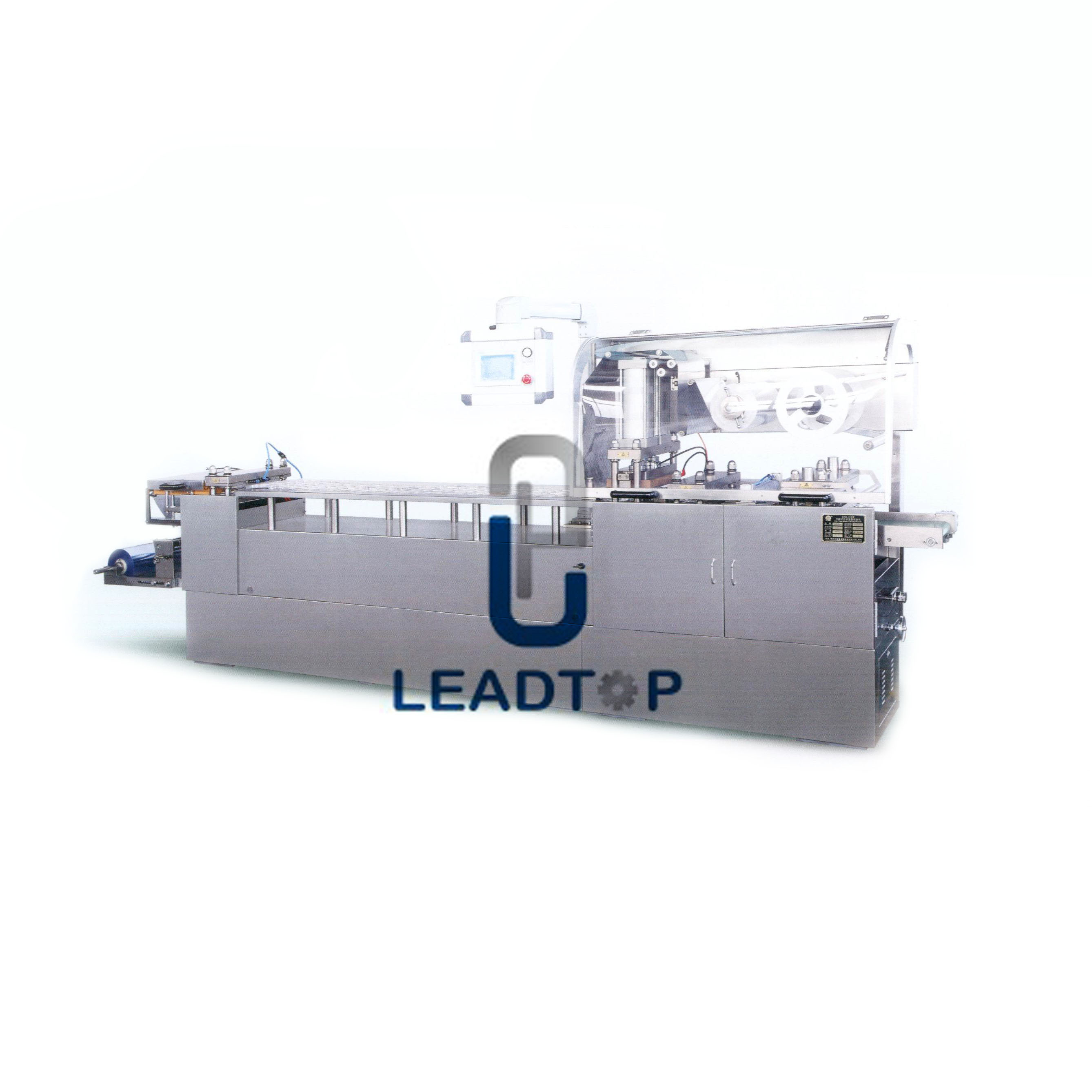

DPB-350C Flat Plate Blister Packaging Machine
This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health porducts, light industries package.
Feature
u Main drive part adopts Germany imported SEWmotor, chian drive splined shaft, diameter up to 64mm, steady, large torque, longer life
u Human Interface Operate, PLC control, stepless frequency speed regulation
u Servo motor ddragging, adjustable stroke within 40-200mm
u Adopt Photocell Device, make blister sheet more beautiful
u PVC and Alu foil transportation adopt sensor switch control, motor transport, synchronization accuracy, Meterial convey steady
u Adopt Separate structure, easy to enter into clean workshop or through good ladder to enter into building workshop
u Different feeder type as perdifferent products
Main technical parameter
u Cutting speed :6-50times/min
u Power(3 phase 4 wires):380V/50Hz
u Adjustable stroke:40-200mm
u Max.forming area:340*190mm
u Max.forming depth:AL/PVC 26mm
u Forming upper heat power:2.5Kw
u Forming lowper heat power:2.5Kw
u Heat-sealing heat power:3Kw
u Motor power:2.2Kw
u Air pump pressure:0.5-0.6MPa
u Air pump volume Flux:≥0.36m³/min
u Packing Material:Medical PVC:0.26-0.40*360mm
Heat-sealing PTP:0.02*360mm
u Machine overall size:3700*600*1650mm
u Machine Weight:2000kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
DPB-250E Flat Plate Fish Food Blister Packaging Machine
U7彩票This advanced high-tech XSJ Series Fish Food Blister Packaging Machine is innovated with success to meet the needs in the market by our own research, fellows. It's mainly suitable for packing red worms(akamushi), eelworm, artemia. baby shrimp etc. have been patented by the state patent administration. Its patent number is 200610008264.77. This machine has two models, model 250 and model 140. It is integrated mechanic, electric, pneumatic technologies. All the operations are controlled through signals sent off by the sensor switches. It's equipped with PLC program, simplifying the construction, making the blister locking synchronize with it to achieve the feeding the pet fish food. The packed food won't be destroyed in its cells and nutrients, and the products won't be deteriorated in the fridge at 18 below zero for within two years, which can keep the proteins and vitamins in the food from losing, keeping its sound performance of returning to water.
Learn More
DPP-140 实验室型铝塑包装机
U7彩票本设备为我公司最新开发的全伺服系统小型铝塑包装机。 本设备广泛运用于只要行业药片胶囊及医疗器械包装，也可用于食品行业各种固体颗粒及液体包装。
Learn More
DPB-250R Tropical Blister Packaging Machine (ALU / PVC / ALU)
It is a kind of high-tech quality product which is designed and produced on the basis of the comparison with the same type machines by our technicians, especially suitable for the packaging requirements of avoiding moistrure and light, sealing in tropical area and moist area.This machine can be used in three functions including AL/PL/AL, AL/PL, and AL/PL. It is ideal multiple-purpose equipment.
Learn More
DPB-250C Flat Plate Blister Packaging Machine
This machine adopt PLChuman Interface, frequency speed regulation, high automation, easy operation. Suitable for tablet, capsule etc AL/PVC, Paper/PVC package. It conforms to"GMP""CE"Requirement.
Learn More
