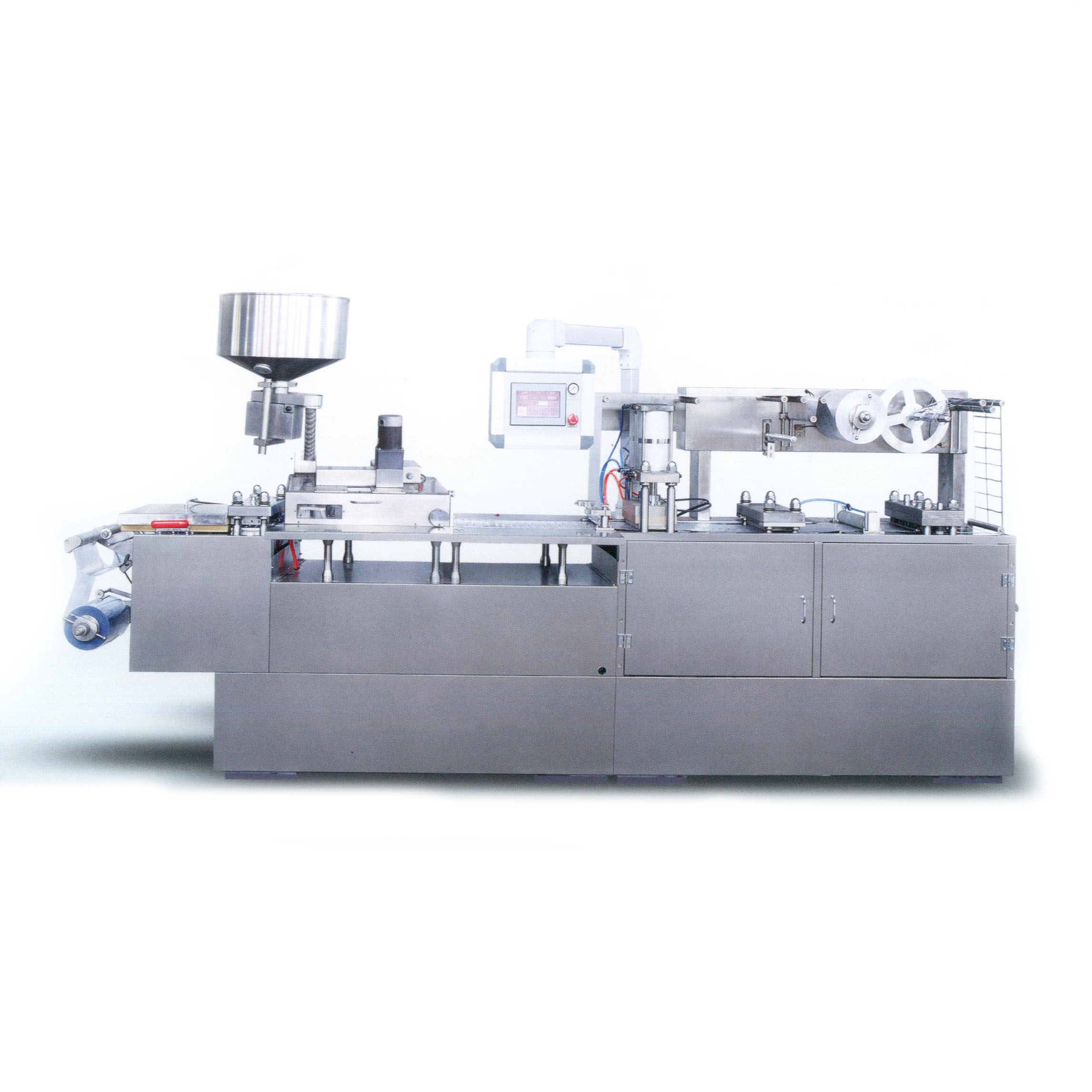

Feature

u Adopt PLC Human Interface Operation, Chinese and English Display, easy operation and maintenance

u Servo motor dragging, digital adjustable stroke, intelligent operation

u Main drive adopt high speed motor, with high performance, longer life, lower noise, steady running

u Flat structure, register heating, positive pressure forming, up and down net web, cylinder heat-sealing, adjustable stroke, easy operation

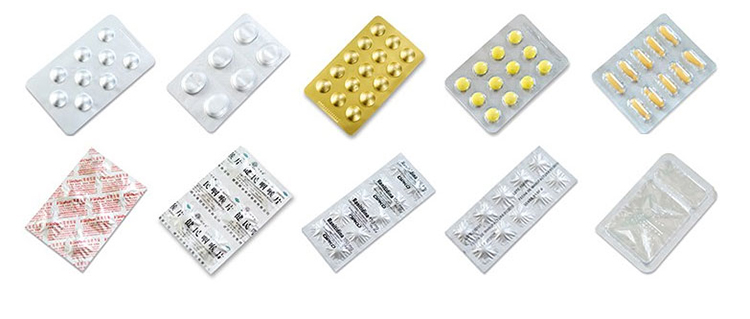

u Heat-sealing station fixed, it can freely adjusted distance in the same flat surface for forming, perforation and cutter etc parts.It issuitable for various sizes of medicine package, and it has high precision and good suitability

u Image register, sealing good-looking

Main technical parameter

u Cutting frequency:6-60times/min

u Capacity(10 thousand pcs/h):3.5-23

u Max.forming area:240*150*14(26)mm

u Stroke:40-160mm

u Standard plate:80*57mm

u Air pressure:0.4-0.6MPa

u Air supply:≥0.3m³/min

u Total power:380V/220V 50Hz 6.2Kw

u Main motor power:1.5Kw

u PVC hard pieces:0.15-0.5*260mm

u PTP aluminum foil:0.02-0.035*260mm

u Dialysis paper:50-100g*260mm

u Mould cooling:tap water or recycling water

u Machine overall size:3100*600*1650mm

u Machine Weight:1600kg
