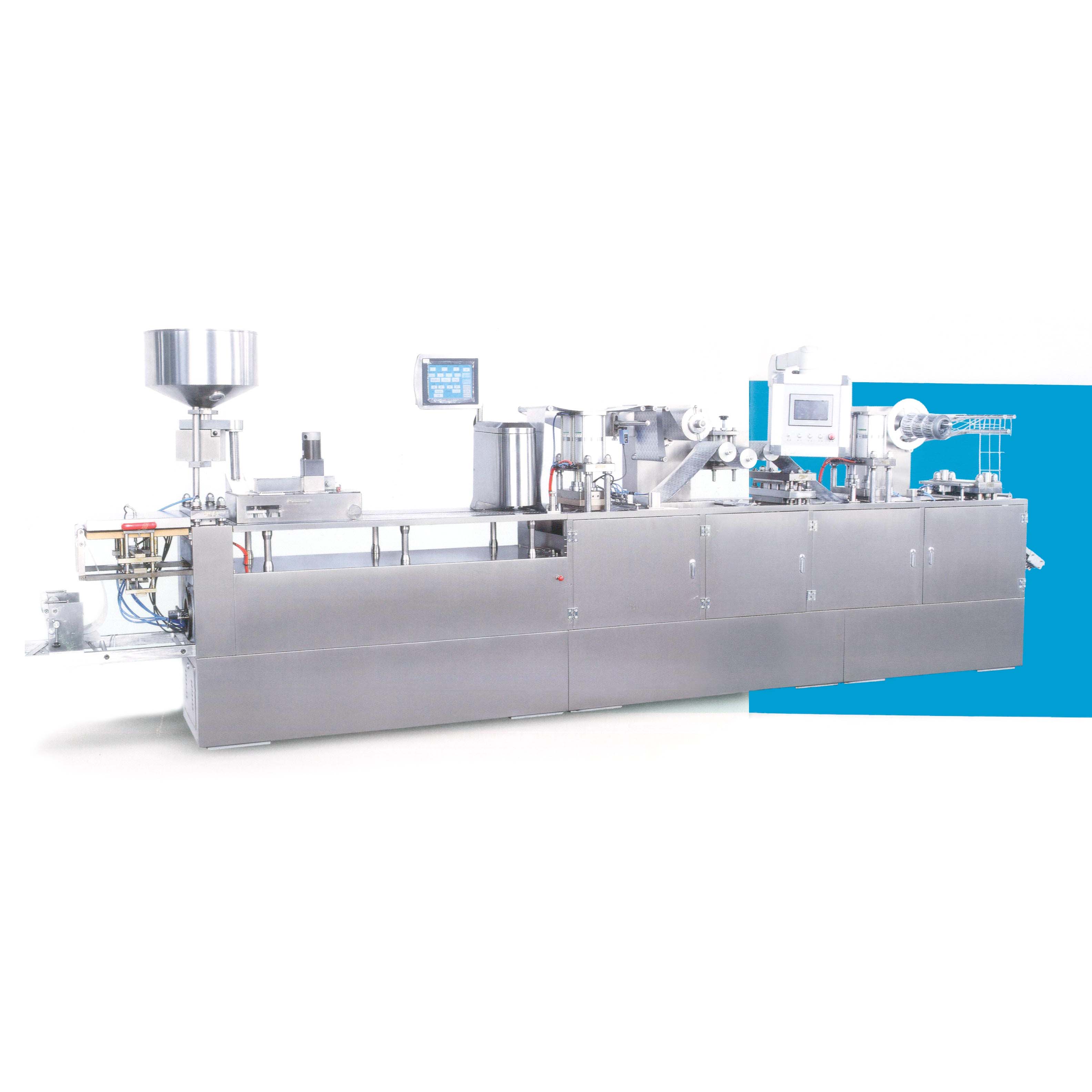

Feature

u Adopt Germany imported SEW motor, which are adjustable stroke, well performance, lower noise, long life and stable operation.

u Adopt improted PLC Human Interface control system, which have high automation, humanized operation and convenient to use.

u Equipped with automatic checking, lack of plate marking and waste plate eliminating devices, to make sure the percentage of finished products reached up to 100%

u The body adopts the linkage segment structure which is convenient to enter into workshop

u Equipped with the advanced and accurate controlled system for light, electricity and gas, to make sure synchronization and register printing packaging for feeding and forming of PVC and tropical aluminum, filling, sealing, printing batch number,   punching, automatic reject, collecting waste etc.

u Servo motor double dragging, steady running

u Image Register, blister sheet sealing beautiful

Main technical parameter

u Cutting frequency (times/min) :AI-plastic-AI 15-40 ; AL-plastic 15-50

u Capacity(10 thousand pcs/h):AL-plastic-AL 4-10 ; AL-plastic 10-30

u Ranges of Adjustable Stroke (mm):40-160

u Max.forming area & Depth of PVC:240*150*16

u Max.forming area & Depth of Tropical Aluminum:240*150*16

u Forming Power(UP) of PVC(Kw):1.5

u Forming Power(DOWN) of PVC(Kw):1.5

u AI-plastic Heat Swaling Power(Kw):1.5

u Forming Alu Heat Swaling Power(Kw):1.5

u Total power:8.5Kw

u Air Pressure(MPa):0.4-0.6

u Compressor Capacity(m³/min):≥0.5

u Packing Material Specification(mm):PVC for pharmacy 0.25-0.5*250

                                       PTP for AL-foil 0.02-0.05*250

                                       Tropical aluminum 0.08-0.10*250

u Overall Dimensions:3600*600*1600mm

u Weight:1800kg
