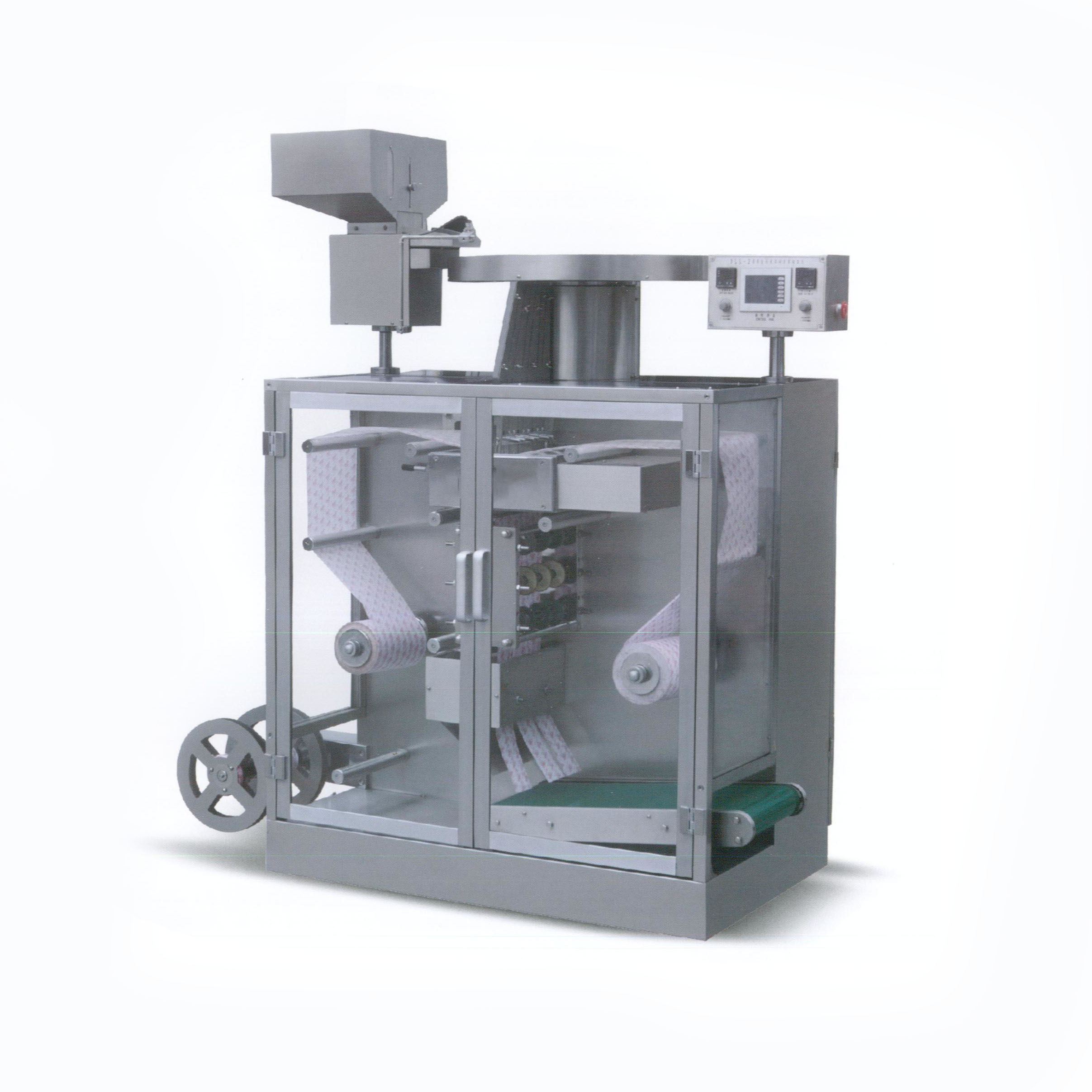

Feature

u Vibration feeder and crisp remover can effectively remove the powder and crisps inside medicine

u Auto counting, horizontal perforation, slitting, waster-side cutting,printing batch number and auto punch etc functions can be achieved automatically in one process

u The diameter of heat pressing cam can be changed from 110 to140mm

u The rotation speed of the material controlling cam is equal to heat pressing cam, and the cams equilibrium is equal to medicament nest of heeat pressing cam. Therefore it can have the distance from the plate edge the medicament nest and the one   between the central medicament nest be equal

u The punch adopts electronic checking signal and PLC programs. It can change the number of granules at any time in the borizontal direction of the plate, making the user free to change the plates without replacing the moulds

u Can equipped with Optical Fiber checking device, reject lacked strip automatically

Main technical parameter

u Speed of drum (rpm):7-15 (stepless)

u Capacity(pcs/h):4-12 as per mould design and product shape

u Max packaging width (mm):260

u PVC for medicine (mm):0.15-0.1*260

u ALU/PVC laminated film (mm):0.08*260

u Hole dia.of reel (mm):40-45

u Electrothermal power:1Kw*2

u Main motor (Kw):1.55

u Air pressure (MPa):0.4

u Air supply:≥0.1m³/min

u Overall Dimensions (mm):1800*900*1850

u Weight (kg):850
