| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Motor Power | overall dimension | weight |
|---|---|---|---|---|---|---|---|
| WF-130 IV.VI | 5-30kg/h | ≤2mm | 80-400mesh | 13900r/min | 1.5kw | 400*500*850mm | 90kg |
| WF-180 IV.VI | 30-80kg/h | ≤2mm | 80-400mesh | 10000r/min | 2.38kw | 850*800*1126mm | 200kg |
| WF-250 IV.VI | 50-100kg/h | ≤2mm | 80-400mesh | 6500r/min | 5.5kw | 550*650*1400mm | 280kg |
| WF-350 IV.VI | 80-300kg/h | ≤3mm | 80-400mesh | 5800r/min | 11kw | 600*700*1480mm | 320kg |
| WF-450 IV.VI | 100-500kg/h | ≤3mm | 80-400mesh | 4500r/min | 15kw | 800*900*1550mm | 550kg |
| WF-650 IV.VI | 300-1000kg/h | ≤5mm | 80-400mesh | 3800r/min | 22kw | 900*950*1880mm | 680kg |
| WF-850 IV.VI | 500-2500kg/h | ≤5mm | 80-400mesh | 2500r/min | 37kw | 1100*1000*2000mm | 1200kg |

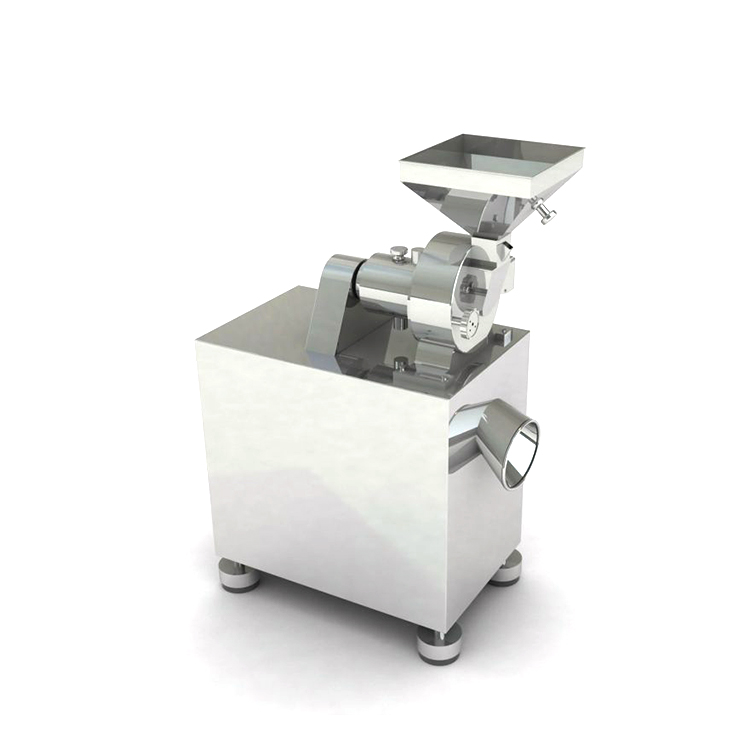

WF Series Fine Crusher
U7彩票 Applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Main Application
Applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle
This machine is of hammer type with high speed and applied for crushing of materials with medium hardness and viscosity. The material is fed into the crushing chamber by a hopper and
crushed by high speed rotating hammer. The machine whose crushing chamber is easy to assemble and clean, has simple structure. Wholly made of stainless steel, the machine makes the
crushed material met the hygienic requirement.
