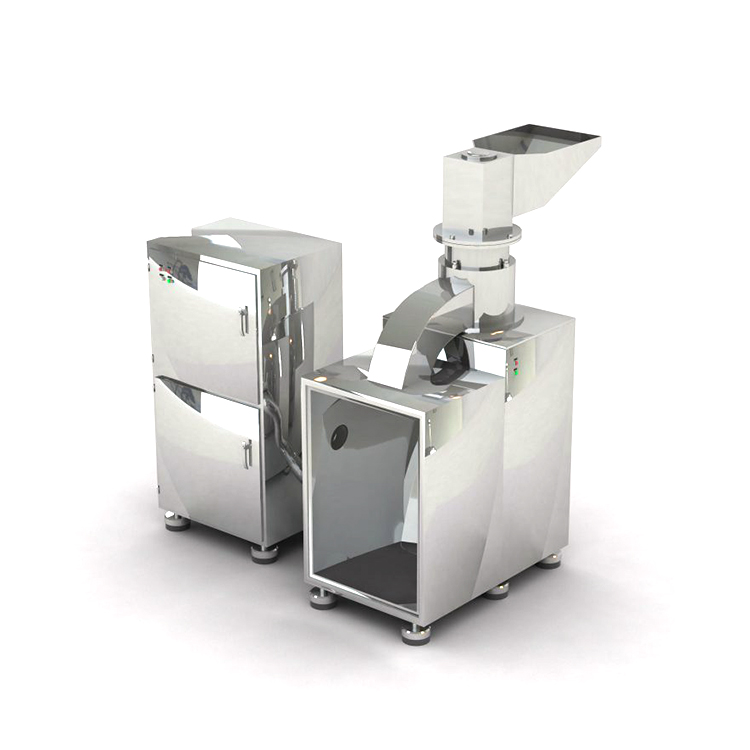

WCSJ Series Dust Collecting Coarse Crushing Set
Applied as supporting equipment before fine crushing process in such trades as pharmaceutical chemical and foodstuff etc., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Main Application
Applied as supporting equipment before fine crushing process in such trades as pharmaceutical chemical and foodstuff etc., this machine is a new generation coarse crushing equipment
combining crushing and dust collection as a whole.
Working principle
This machine is of vertical crushing structure, and the material is fed into the crushing chamber through a hopper, crushed by simultaneous cutting of both fixed and movable knives and
rotating impact of rotating knife, and enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a
bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce
the cost of enterprise, thus reaching the international avanced level.
Model
Prdouction Capacity
Feeding Size
Output Size
Spindle Speed
Crushing motor
Dust collecting motor
overall dimension
weight
WCSJ-20B IV,V
100-500kg/h
≤100mm
0.5-20mm
960r/min
5.5KW
1.5kw
700*800*1100mm
500kg
WCSJ-320B IV,V
300-1200kg/h
≤100mm
0.5-20mm
1070r/min
11KW
1.5kw
880*900*1250mm
850kg
