PYG4/1 Spray Filling and Capping Monobloc
U7彩票
Feature
u Adopt injection pump to fill high precision, large range of adjusting dosage.
u The pumpsystem don't absorb the medicament, good chemical stability,be able to resist high temperature and erosion.
u Low level liquid receiver, convenient to clean.
u Filling system has the function of shrinking, no drop leak.
u Apply to fill light liquid and water like.
u U7彩票Special manipulator and guiding device are equipped on it to ensure the spray cap reliably fitted on the opening of container.
u Filling needle is diving bottom of bottle to fill and moving up slowly,avoid bubbling.
u Filling and sealing are in one body of the machine, economical and low space possessing.
u U7彩票Flexible claw capping head, adjustable degree of tightness freely.
u U7彩票The whole machine is designed according to requirements of GMP.
Main technical parameter
u Filling rang:≤500ml
u Filling precisiong:≤±1%
u Capacity:30-40瓶/分钟
u Power supply:220V/380V 50Hz
u Rated power1.2Kw
u Net weight:650Kg
u Overall dimennsion:2440*780*1600（mm）
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

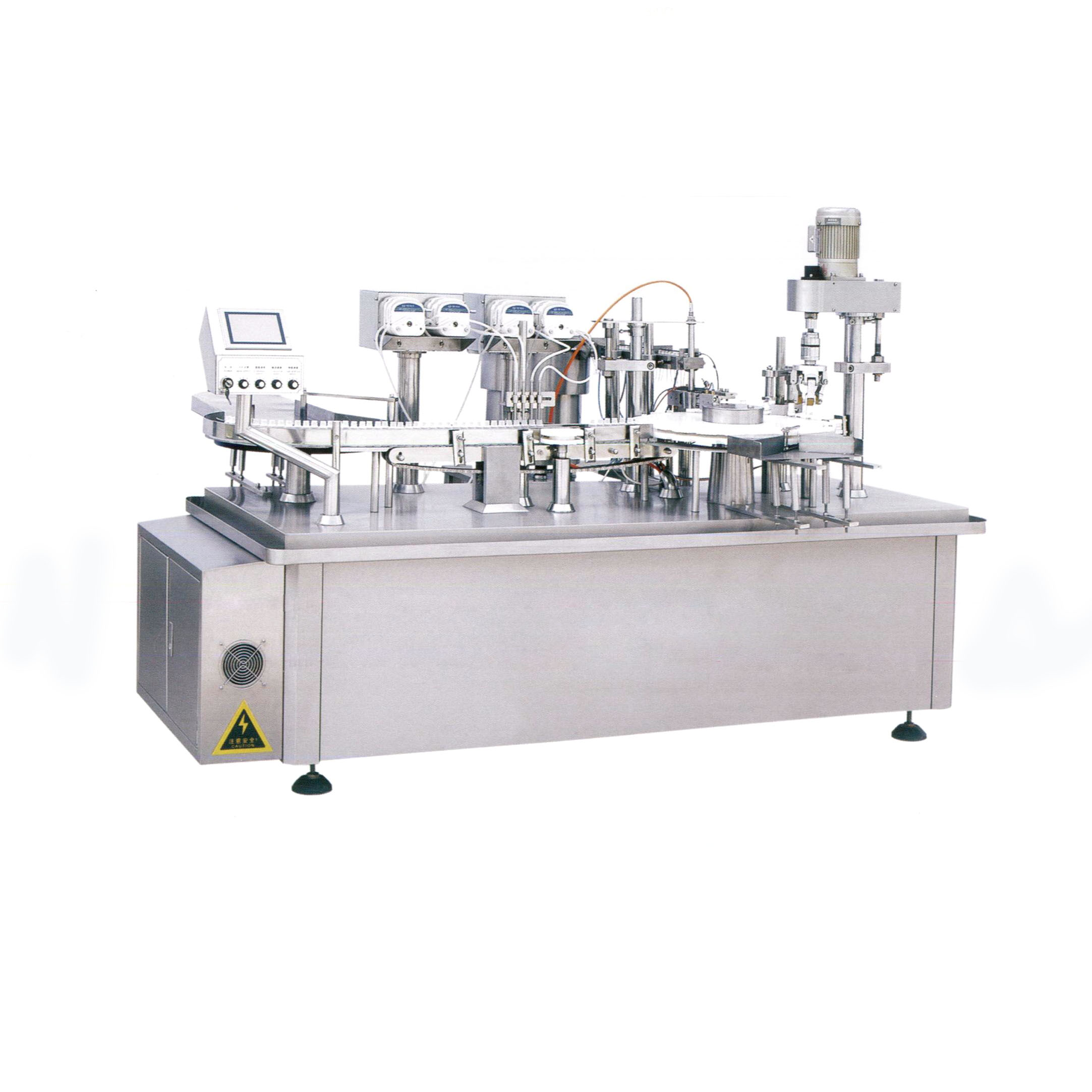

FYG Essential Oil Filling Line
This liquid filling & capping machine is new generation utility product, which is best suitable ofr needle-insert filling in the small opening mouth of bottle less than 3.0mm. It can automatically accomplish bottle in-feeding, filling, cap placing, and screw capping. Vacuum suck system is specially used to accumulate the rudimental oil attached outside surface of bottle and nozzles, avoid the oil overflowing onto the surface of bottle to gog against label stick. This machine is design and produce accordance with regulation.
Learn More
20-500ml Glass bottles of Oral liquid, Syrup, Liquor, Healthcare products etc. Washing, Drying and Sterilizing, Filling, Capping Line
U7彩票This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing. Auto accomplish bottle unscrambling, washing, drying and sterilizing, volumetric filling, cap screwing (sealing), light inspecting, labeling process. Thewhole machine meets the requirements of GMP.
Learn More
PXG/8 Spray Bottle Capping Machine
U7彩票This series of machines is applied for screwing spray pump onto bottle mouth in industry of pharmaceutical and cosmetic field. As for the slim and long tube of the spray pump, this machine equip manipulate guider which can lead the long tube right into bottle mouth.
Learn More
