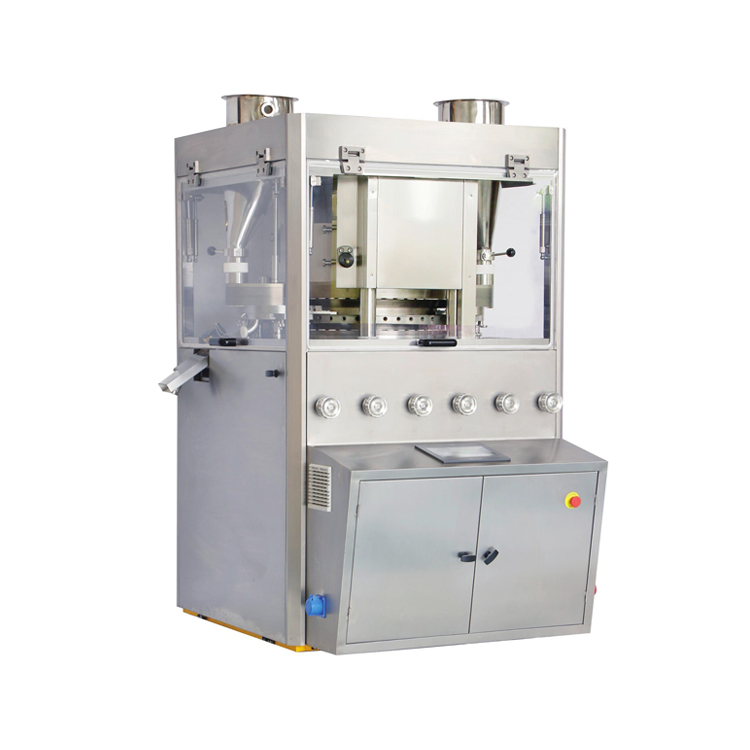

GZPK620 Double Discharge High-speed Rotary Tablet Press
U7彩票 Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
Gzpk620 double discharge high-speed rotary tablet press is designed with double forced feeding and double discharge structure. The process of filling, metering, pre pressing, main pressing and tablet discharging is completed twice a week by rotating the punching plate. The maximum output can reach 580000 tablets / hour. The equipment has stable working performance, stable machine operation and low noise. Replace one set of guide rail, press double-layer piece.
main features
It is in accordance with GMP standard, compact, reliable and easy to operate.
The touch screen software of human-machine interface is easy to operate and has the function of self diagnosis of fault points.
The touch screen hydraulically controls the main pressure wheel and the pre pressure wheel.
The automatic detection function of chip weight and the automatic recognition and elimination function of waste chips appear.
Upper and lower punching over tight protection, electric control system protection, host overload shutdown protection, forced feeding motor overload protection, air source pressure
Under protection, system fault automatic alarm protection.
Automatic lubrication system.
Production information can be displayed, printed and stored.
Technical parameters
|
Data |
45 |
55 |
65 |
|
No. of stations |
45 |
55 |
65 |
|
Output range (Tablet s/h) |
40 |
49 |
58 |
|
Max filling depth |
20mm |
16mm |
|
|
Max. Major Pressure (kn) |
100KN |
||
|
Max. Pre-pressure (kn) |
16KN |
||
|
Max length of irregular tablet |
1 ~8mm |
||
|
Round tablet diameter |
25mm |
16mm |
13mm |
|
Max length of irregular tablet |
<25mm |
< 17mm |
< 14mm |
|
Weight tolerance |
±3% |
||
|
Noise |
≤80dB |
||
|
Motor Power (kw) |
11KW |
||
|
Dimension of machine |
1400x1500x1900 |
||
|
Weight |
3300 kg |
||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the sheet diameter is the smallest and the rotational speed is the highest. The yield is different with different diameter and type. |
||
