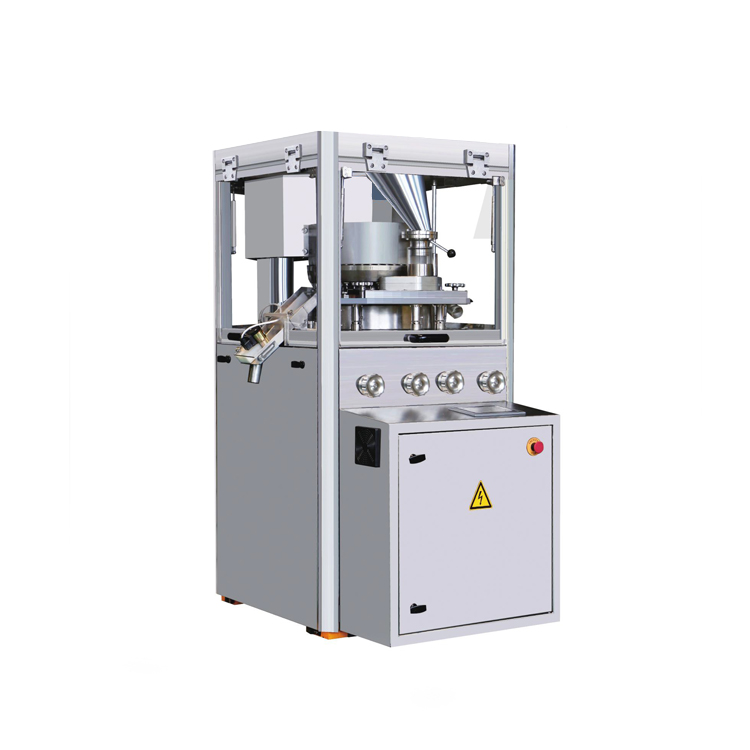

GZPK 370 High-speed Tablet Press
U7彩票
Common Features
Adopts PLC control with auto protective function
Touch screen operation. Operation menu is easy tounderstand
Force-feeding unit with a good applicability to powder
Central auto lubrication system
Main and pre-pressing, tablets formed twice
Unique features of GZPK series
Auto compensation of powder
Monitoring pressure of each punches and displays
the pressure on the touch screen. There are two
chutes for qualified tablets and defective tablets
Defective tablets can be rejected from one chute
Technical parameters
|
Data |
GZPT26 |
GZPT32 |
GZPT40 |
GZPT50 |
|
No. of stations |
26 |
32 |
40 |
50 |
|
Tooling type |
D |
B |
BB |
TF16 |
|
Output range (Tablet s/h) |
20000-171600 |
25000-211200 |
31000-264000 |
38000-325000 |
|
Rotation speed range (rpm) |
13-110rpm |
|||
|
Main pressure |
100 KN |
|||
|
Pre-pressure |
16KN |
|||
|
Filling depth |
20mm |
16mm |
||
|
Max length of irregular tablet |
1-8mm |
|||
|
Max tablet diameter |
25mm |
16mm |
13mm |
10mm |
|
Max irregular length |
<25mm |
<19mm |
<16mm |
<11 mm |
|
Diameter of die |
38.1 mm |
30.16mm |
24mm |
19mm |
|
Length of punch |
25.35mm |
19mm |
19mm |
16mm |
|
Punch length |
133.6mm |
|||
|
Noise |
≤70db |
|||
|
Main motor power |
7.5kW |
|||
|
Dimension |
820 x1100 x1750mm |
|||
|
Weight |
1600kg |
|||
|
Remarks |
The maximum output refers to the maximum output achieved when the sheet type is circular, the sheet diameter is the smallest and the rotational speed is the highest. The yield is different with different diameter and type. |
|||
