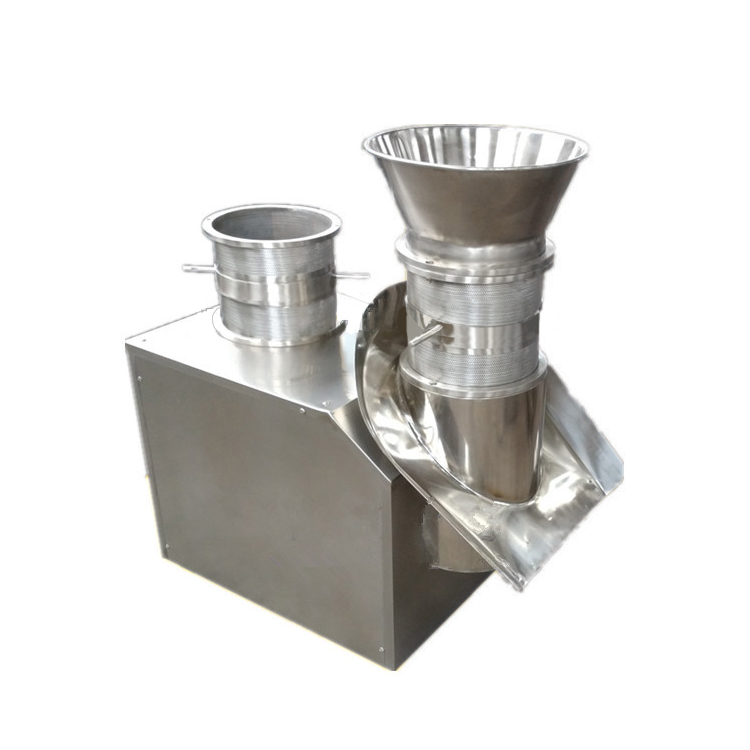

Factory Supply High Performance Rotary Drum Wet Extruding Granulator
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Function
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Technical Data
|
Item |
U7彩票 Model/specification |
U7彩票 Unit |
|
Capacity |
5-10 |
Kg/h |
|
Diameter of pellet |
0.7-3.5(by user) |
mm |
|
Power |
8.6 |
Kw |
|
Overall Dimensions |
1550*950*1350 |
Mm |
U7彩票
Complete Set
|
System |
Name |
Material |
Specification |
Place of produce |
|
Extruding system |
Screw |
SUS304 |
Ø50 |
Haijiang |
|
Motor |
|
1.5KW |
China |
|
|
Inveter |
Siemens |
1.5KW |
Germany |
|
|
Granulating hole cover |
SUS304 |
|
Haijiang |
|
|
Pelleting system |
Rotating motor |
|
3kw stand model |
china |
|
Pelleting chamber |
|
δ=12mm |
Haijiang |
|
|
Rotor disk |
SUS304 |
Ø 400
|
Haijiang |
|
|
Blower |
|
1.1 kw volution pump |
china |
|
|
Inveter |
Siemens |
1.1KW |
Germany |
|
|
Control system |
Main The part of electric |
siemens |
|
germany |
|
Touch screen |
Siemens |
Siemens7’’ |
Germany |
|
|
PLC |
|
Siemens |
Germany |
Easy Damaged Part
|
Item |
Specification |
Number |
Place of production |
|
Silicon sealing |
|
10m |
China |
U7彩票
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
Factory Supply High Performance Rotary Drum Wet Extruding Granulator
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Learn More
stainless steel animal extrusion spheronization feed granulator
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
U7彩票Some of the part with welding, gear box with flange combined with the extruder together.
stainless steel food extrusion granulator
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
U7彩票Some of the part with welding, gear box with flange combined with the extruder together.
Agricultural fertilizer extrusion spheronization granulator machine
All material contact part make by the SUS304.
Drive part use motor drive the gear box.
U7彩票Some of the part with welding, gear box with flange combined with the extruder together.
