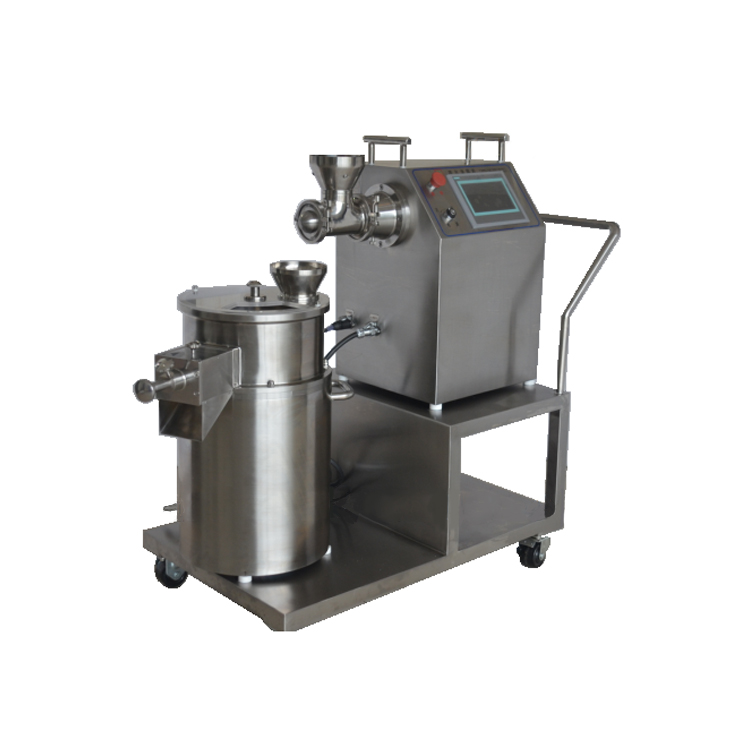

Factory Supply High Performance animal extrusion spheronization feed granulator
U7彩票 The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
Function
The process of machine is powder and binder mixing to wet material, then to extrude and to spheroidizing on the centrifugal dish, the pellets can be got.
U7彩票
Technical Data
|
Item |
Model/specification |
Unit |
|
Capacity |
5-10 |
Kg/h |
|
Diameter of pellet |
0.7-3.5(by user) |
mm |
|
Power |
8.6 |
Kw |
|
Overall Dimensions |
1550*950*1350 |
Mm |
Complete Set
|
System |
Name |
Material |
Specification |
Place of produce |
|
Extruding system |
Screw |
SUS304 |
Ø50 |
Haijiang |
|
Motor |
|
1.5KW |
China |
|
|
Inveter |
Siemens |
1.5KW |
Germany |
|
|
Granulating hole cover |
SUS304 |
|
Haijiang |
|
|
Pelleting system |
Rotating motor |
|
3kw stand model |
china |
|
Pelleting chamber |
|
δ=12mm |
Haijiang |
|
|
Rotor disk |
SUS304 |
Ø 400
|
Haijiang |
|
|
Blower |
|
1.1 kw volution pump |
china |
|
|
Inveter |
Siemens |
1.1KW |
Germany |
|
|
Control system |
Main The part of electric |
siemens |
|
germany |
|
Touch screen |
Siemens |
Siemens7’’ |
Germany |
|
|
PLC |
|
Siemens |
Germany |
U7彩票
Easy Damaged Part
|
Item |
Specification |
Number |
Place of production |
|
Silicon sealing |
|
10m |
China |
U7彩票
SERVICE AFTER SELL:
We will furnish test certificates for raw material like for SUS304&SS316L . Also we will submit test certificates for all bought out items like motor and gear box.
IQ, OQ documentation will be given as per standard format suggested by your company.
Two copies of Operational manual with English will be given at the time of dispatch of machine.
FAT&SAT(by client) will be executed
All our machines guaranteed for trouble free performance for a period of 12 months from commissioning.
Installation and service after sell for free for one year, the air ticket from china to Client’s and Client’s to china will for the buyer’s account.
And the buyer should supply our engineer’s room and food!
