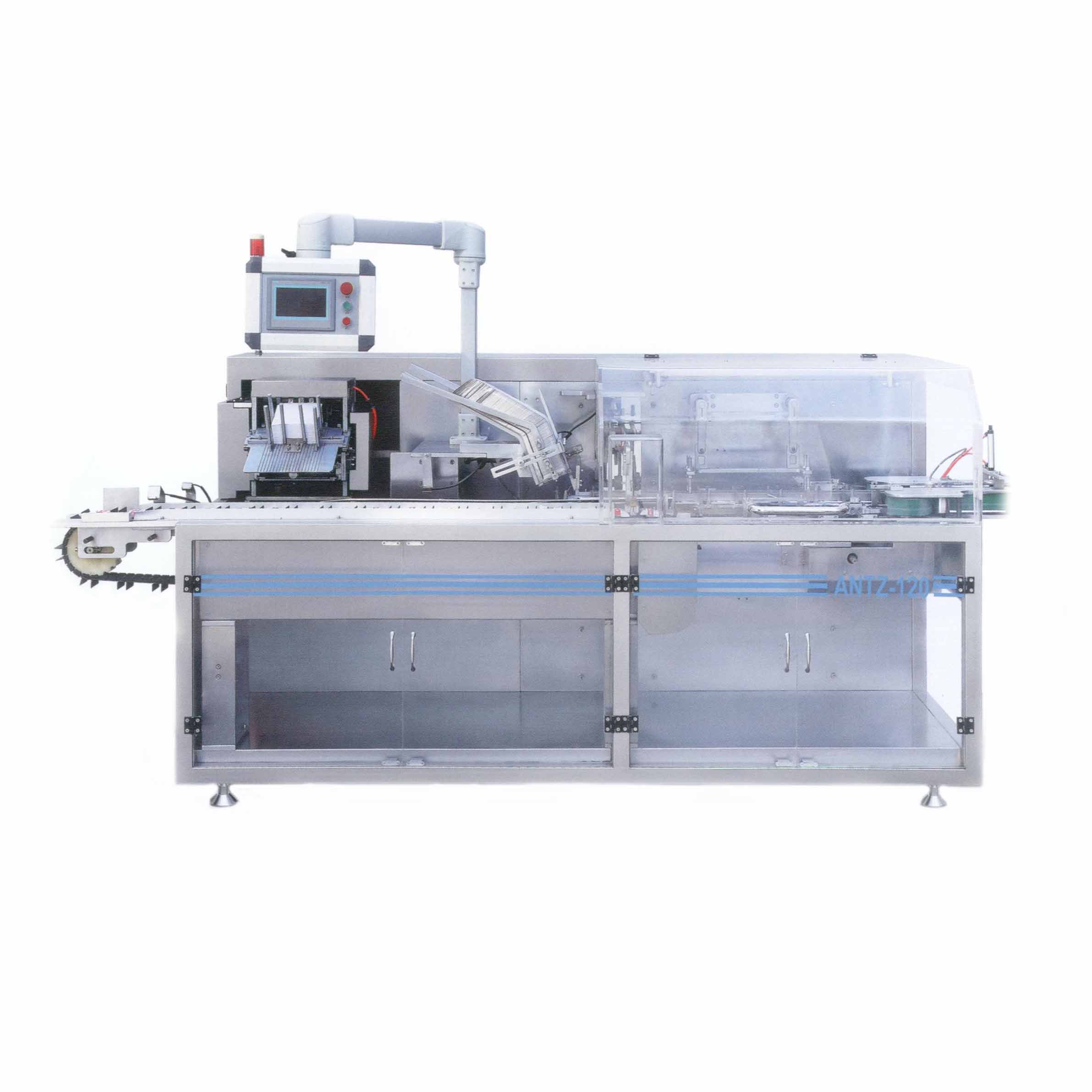

ANTZ-120 Horizontal Automatic Cartoning Machine
The machine is designed and constructed for package medicine. The cardboard boxes are formed; and the bottles, blister, andleaflets are encased into boxes; the machine fold and seal the bottom of boxes and encased the leaflets automatically, the leafletscan be folded as 1-4 line. Printing lot# function is combined on the machine. The machine are widely applied to package medicine,food, cosmetic, health care products, etc.
Feature
u International famous brand of electric components such for PLC touch screen, frequency inverters, etc
u Adopt human-machine interface
u Automatically displaying device for malfunction, speed and finished products counting
u Automatica detection and rejection device for lacking of blisters or leaflets
u Stable performance, operation is easy
Main Techniacl Parameter
|
Packing speed |
30-120boxes/min |
|
|
Box |
Quality of box |
250-350g/㎡ |
|
Size range |
(50-180)mm*(30-85)mm*(15-50)mm |
|
|
Leaflet |
Quality of Leafleft |
50-65g/㎡ |
|
Unfold leaflet size |
(80-300)mm*(70-210)mm |
|
|
Leaflet folding type(1-4 line) |
(70-120)mm*(20-40)mm |
|
|
Compressed air |
Air pressure |
0.5-0.7MPa |
|
Air consumption |
120-160L/min |
|
|
Power supply |
220V 50Hz |
|
|
Motor power |
1.5Kw |
|
|
Machine dimension |
3200*1200*1900mm |
|
|
Machine weight |
1500kg |
|
