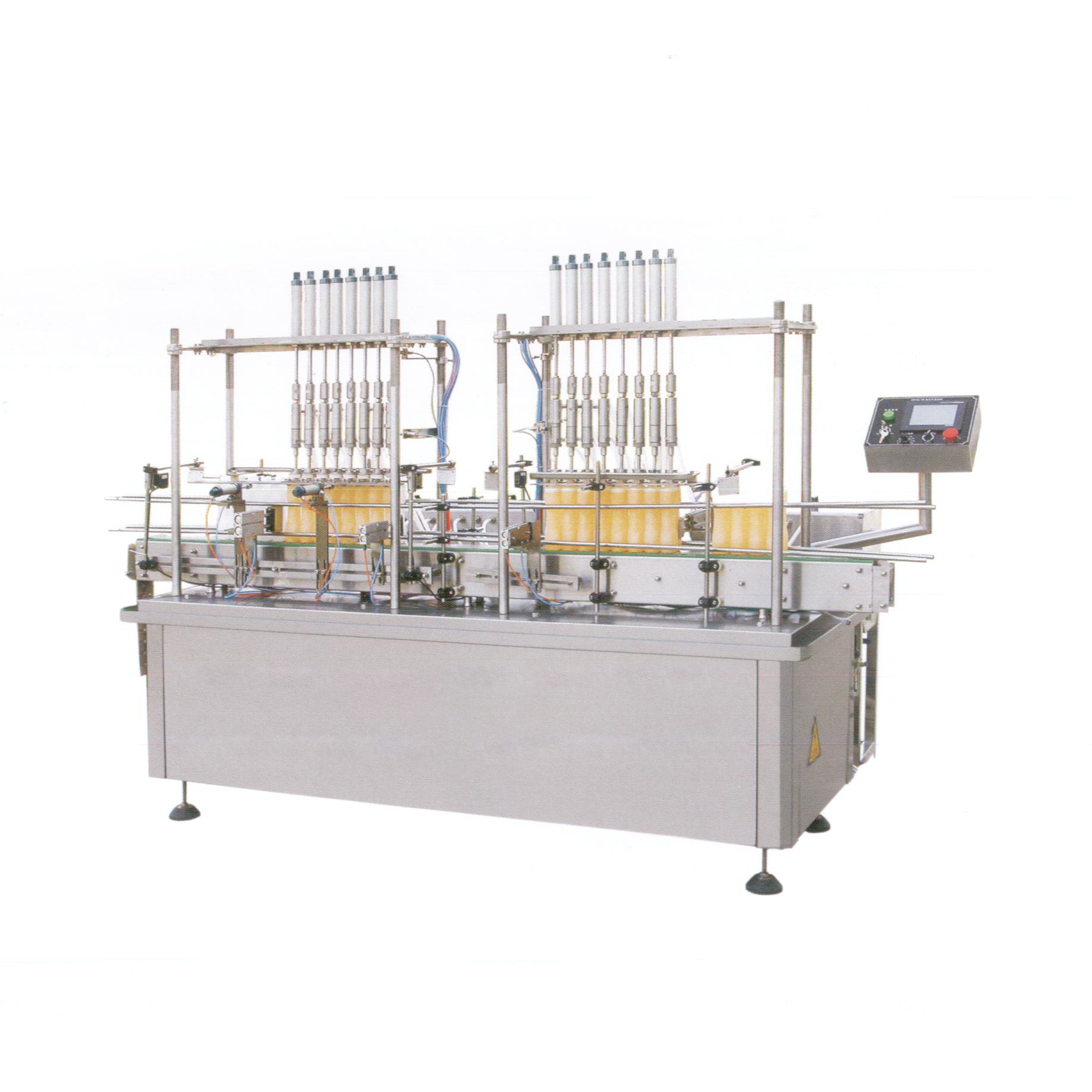

ZHYG Linear overflow filling machine
U7彩票 ZHYG linear overflow filling machine, applicable to pharmaceutical, food agricul ture and other industries of the easily-bubble from the liquid filling, the same as the liquid filling without bubble. This can be single used, also can be linked with other euipments, the best anti-foaming filling machine currently in domestic.
Feature
u The implementation of pump filling, overflow fillers to absorb foam & eliminate foam overllow & dripping
u Adopt low liquid hopper, convenient to clean disinfection
u Neck index clamp device, accurate positioning bottle mouth before nozzles go inte the bottles
u Convenient to adjust volume, easy to operate, change different bottle in a short time
u Machine desiagned and manufactured accordance to GMP regulation
Main technical parameter
u Option filling rang:50-5000ml
u Filling head:4,6,8,12,16
u Filling precision:≤±2%
u Request air pressure:≤0.6-0.7MPa
u Air consumption:15m³/h
u Power:220V/380V 50Hz
u Power output:≤2Kw
u Machine noise:≤50dB
u Net weight:≤800Kg
Production capacity (e.g.5000ml )
u 4 heads:≥15bpm
u 8 heads:≥30bpm
u 12 heads:≥45bpm
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
YG200 High-Speed Eysdrop Aseptic Filling Production Line
U7彩票The eysdrop aseptic filling line consist of four main units including unscrambler, conveyor, pure air washer, monobloc of filling plugging and capping unit. Themachine is mainly used to accomplish bottle unscrambling, conveying, air washing, dosage discharging, plug & capplacing, The entire production process is protected under laminar flow H14 and aseptic isolation cover, which isolated all working area and keep eyedrops product be filled under aseptic environment. The regional isolation protection to ensure that the eye drops sterile production. The whole machine meet the requirements of new GMP. The production line is also suitable for the production of other similar plastic bottle.
Learn More
AV Automatic viscosity filling machine
AV Automatic Viscosity Filling Machine is applied for filling glue, liquid soap, shampoo and cream etc. In the industry of pharmaceutical and chemical. It complete and stable for filling heavy liquid and viscosity in the marketplace.
Learn More
AGF Automatic gravity filling machine
U7彩票AGF automatic gravity liquid filling machine adopt logic controller PLC, 6" LCD touch screen system, ordinary pressure flow passage parameters, set the flowing time to control different quantify. It applys to pharmaceutical, foodstuff, pesticide, chemical, etc.
Learn More
