YG18/12 Series Rotary Liquid Filling and Capping Monobloc
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
u Monobloc of filling and capping in one machine, low spaceoccupied.
u Rotary running system for both filling and capping, working stably and high efficient.

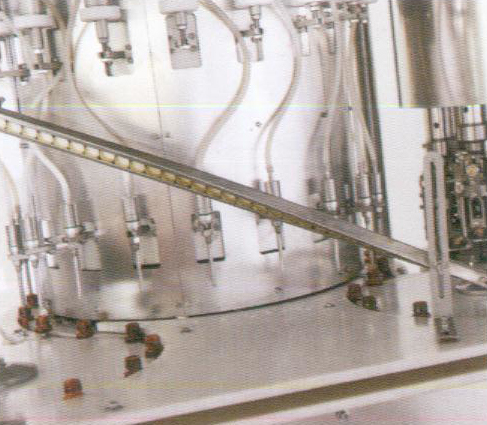

u Adopt volumetric piston pump to fill high precision, fit to light liquid and medium viscosity product, pump is easily taken down, convenient to clean and sterilize.
u The seal ring of piston pump is made of different kinds of matenrial, such as silicone, Teflon etc, optional ceramic pump in special use.
u PLC control system, frequency conversion adjustable speed.
u Filling volume of all pumps is major adjusted in one time, minor adjustment for each pump. Easy and quick operate.
u Filling system has the function of shrinking, no drop leakage.
u Top bottom fill, mostly reduce foam.

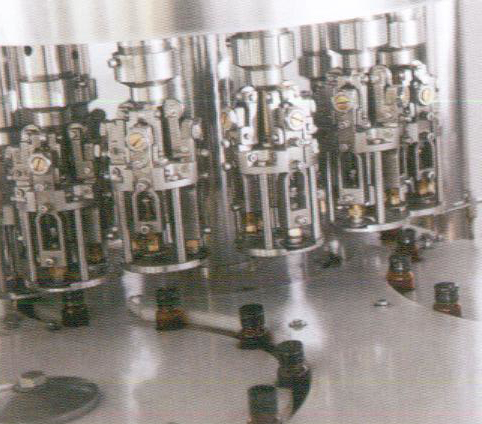

u The capping head use twoknives screw thread, two knives sealing, and blade quenching, durable, seal and threaded are beauty and unity.
u The whole machine meet GMP regulation.
Main Technical Parameter
|
Filling nozzles |
18 |
|
Capping heads |
12 |
|
Filling range |
20-500ml |
|
idea filling range |
20-30ml；50-70ml；70-120ml；180-200ml；150-500ml |
|
Alternative cap type |
Pilfer-proof cap, screw cap, alum, ROPP cap |
|
Production capacity |
150-200B/M |
|
Filling precision |
≤±1% |
|
Yield of capping |
≥99.9%、 |
|
Power supply |
220/380V 50/60Hz |
|
Power consumption |
≤2.2Kw |
|
Air pressure range |
0.4-0.6Mpa |
|
Net weight |
2500Kg |
|
Overall dimensions(mm) |
2380*1480*2000 |
