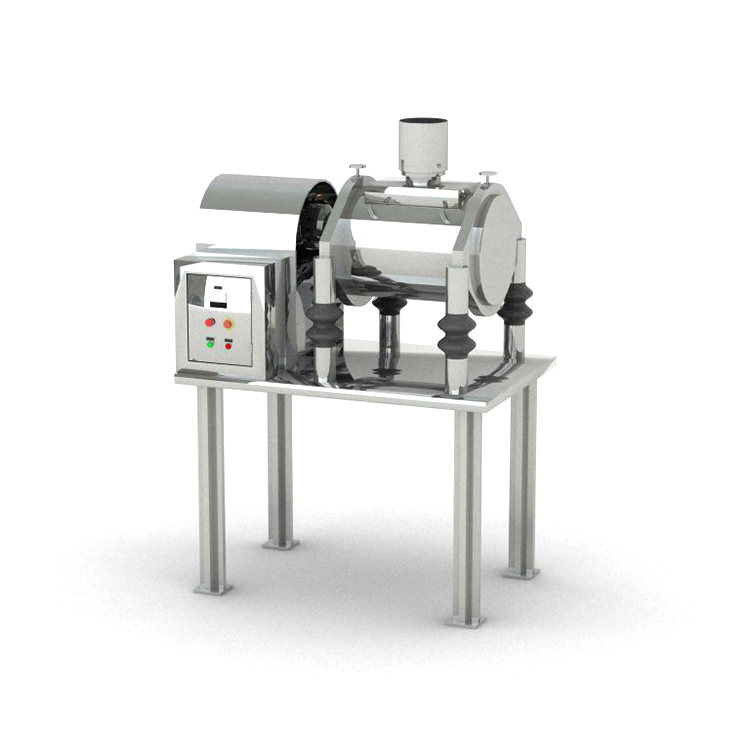

WFM Series Super Fine Crushing And Vibrating Mill
Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level.
Main Application:
Used for super fine crushing of fiber material in such trades as pharmaceutic, chemical and foodstuff etc., Including glossy ganoderma, liquorice, shrimp shell and every kind of bone and
plant fiber etc., With the crushing fineness reaching micron grade, this machine has reached the international advanced level.
Working principle:
This machine is a horizontal vibrating mill. The material is fed into the crushing chamber through a hopper and crushed through collision and grinding with grinding barin side the chamber
under the effect of vibration. Furthermore, it is equipped with water cooling unit to control the temperature inside the crushing chamber. Designed according to GMP standard and wholly
made of stainless, this equipment can be operated under full close conditions without dust flying and environmental pollution.
Model
Working volume
Handing capacity
Crushing Fineness
Cooling type
Power
overall dimension
weigh
WFM-10
10L
2-2.5kg/h
200-1800mesh
Water cooling
1.5kw
1200*800*1400mm
580kg
WFM-50
50L
10-30kg/h
200-1800mesh
Water cooling
7.5kw
1700*900*1700mm
1500kg
WFM-100
100L
20-60kg/h
200-1800mesh
Water cooling
11kw
2850*1200*1800mm
2800kg
U7彩票 Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.

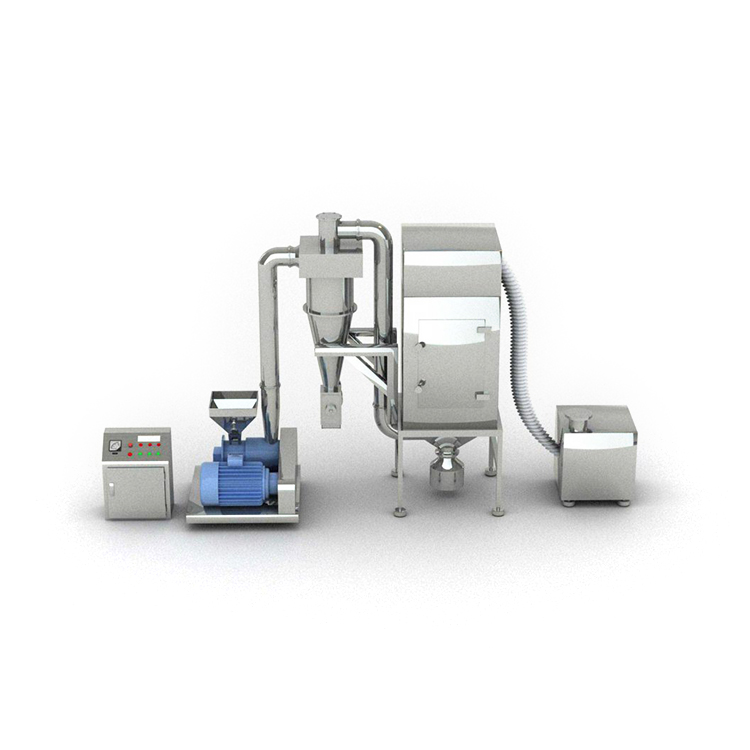

YF Series Traditional Chinese Medicine Dust Collecting Crushing Set
The machine unit is suitable for such fields as pharmaceutical, food,chemical etc.. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free ,etc. It has good pulverization effect to any material, especially suitable for fiberous Chinese herbs or oily materials.
Learn More
WCSJ Series Universal Coarse Crusher
U7彩票This machine is applied as supporting equipment, before fine crushing process in trades such as pharmaceutical, chemical and foodstuff ect., which has better crushing effect for any material without limitation on its viscosity, hardness, softness and fiber ect.
Learn More

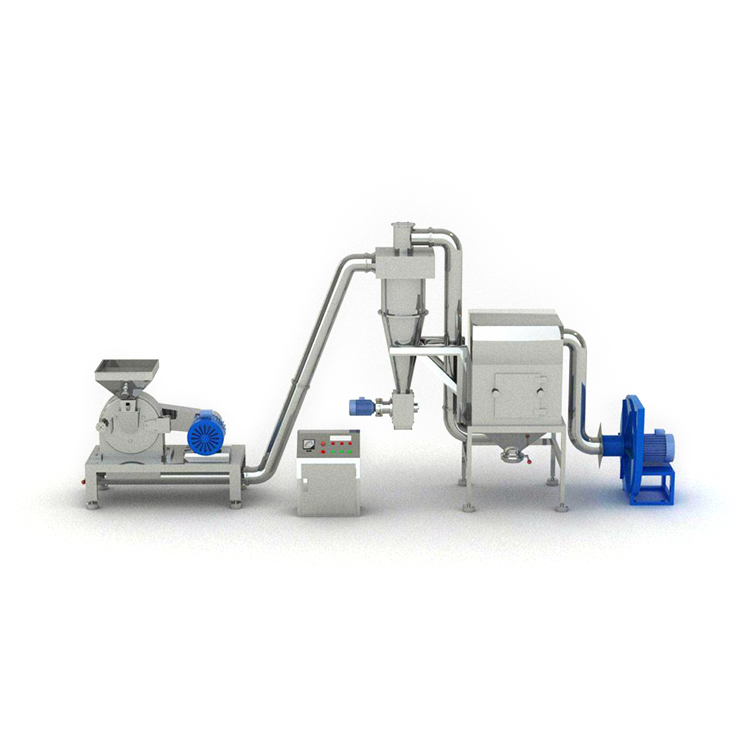

GF Series dust collecting crushing set
This set is applied for such trades as pharmaceutical, foodstuff, chemical and so on. which is specially used for crush for crushing materials with much fiber or grease.
Learn More

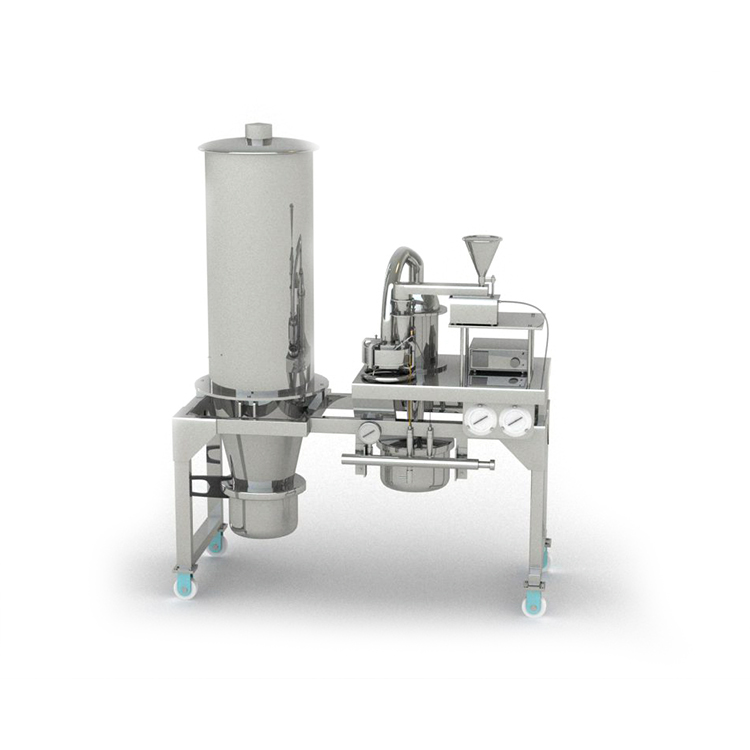

QS-100 Airflow Crusher
