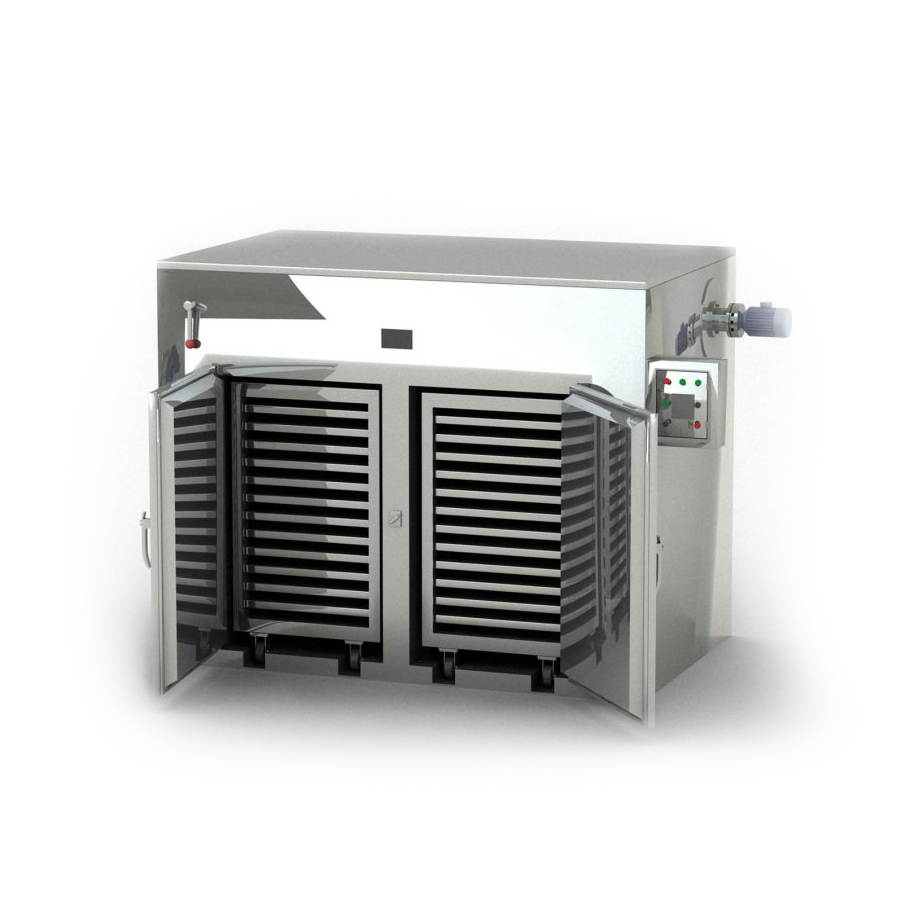

Model RXH Series Hot Air Circulating Drier
U7彩票 It’s applied for drying and dehumidification of material in such trades as pharmaceutical, chemical foodstuff, light industry, heavy industry etc., as well as heating and dehumidification of product, including raw medicines, original medicines, doses, traditional Chinese medicine tablet, powder, granulate, electuary, ball packing bottle, pigment, dyestuff, dried vegetable, food, plastic resin, electric clement and baking finish etc.
Main Application:
It’s applied for drying and dehumidification of material in such trades as pharmaceutical, chemical foodstuff, light industry, heavy industry etc., as well as heating and dehumidification of product, including raw medicines, original medicines, doses, traditional Chinese medicine tablet, powder, granulate, electuary, ball packing bottle, pigment, dyestuff, dried vegetable, food, plastic resin, electric clement and baking finish etc.
Model
RXH-B-O
RXH-B-I
RXH-B-Ⅱ
RXH-B-Ⅲ
RXH-B-Ⅳ
Drying capacity
60kg
120kg
240kg
360kg
480kg
Power
0.45kw
0.45kw
0.9kw
1.35kw
1.8kw
Steam consumption
10kg/h
20kg/h
45kg/h
71kg/h
90kg/h
Radiation area
5m
20m
40m
80m
100m
Blast
3450mh
3450mh
6900mh
10350mh
13800mh
Temperature deviation
±2℃
±2℃
±2℃
±2℃
±2℃
Baking disc
24
48
96
144
192
Baking cart
1
2
4
6
8
Overall dimention
1400*1200*2300
mm
2300*1200*2300
mm
2300*2200*2300
mm
2300*2200*2300
mm
4460*3200*2000
mm
