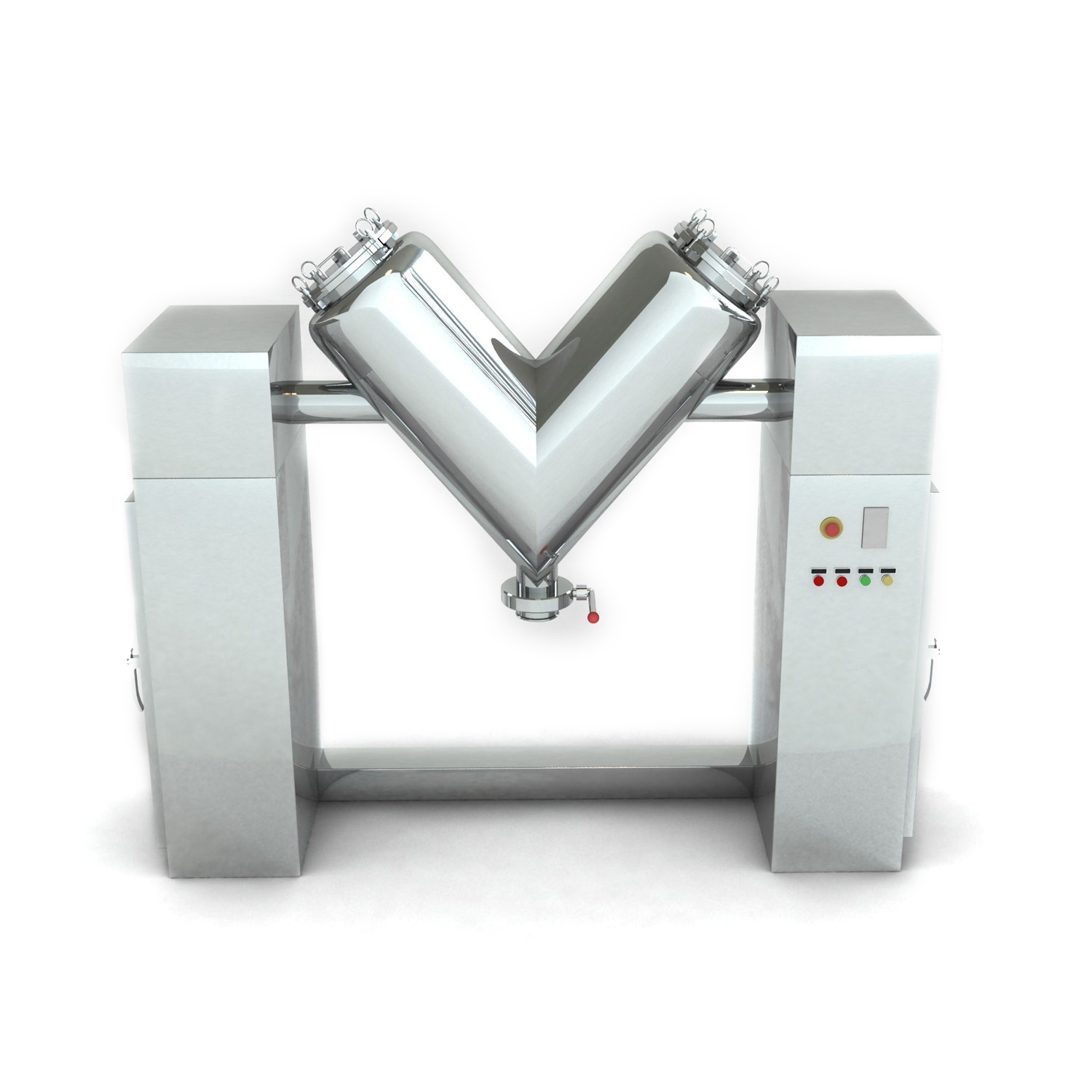

Model CH-V Series High Efficiency Blender
This machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries.
Main Application:
This machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries.
Working principle:
Featuring unique structure, high mixing efficience and without dead angle, the mixing barrel is made of stainless steel with polished internal and external walls. And this machine has beautiful appearance, uniform mixing and wide application.
Model
Model of
auxliary
vacuum pump
Barrel
volume
Max loading
volume
Max loading
weigh
Mixing
time
Motor
power
Barrel
speed
Overall
dimension
Weight
CH-50V
W2
50L
20L
20kg
0-99min
0.75kw
20r/min
1250*450*1060mm
160kg
CH-100V
W2
100L
40L
40kg
0-99min
1.1kw
15r/min
1620*500*1480mm
220kg
CH-200V
W2
200L
80L
80kg
0-99min
1.1kw
15r/min
1800*600*1850mm
280kg
CH-300V
W2
300L
120L
120kg
0-99min
1.1kw
12r/min
1900*650*1850mm
320kg
CH-500V
W2
500L
200L
200kg
0-99min
2.2kw
12r/min
2500*800*2050mm
550kg
CH-1000V
W3
1000L
400L
400kg
0-99min
4kw
10r/min
2850*1050*2050mm
950kg
CH-1500V
W3
1500L
680L
680kg
0-99min
5.5kw
10r/min
3400*1100*3200mm
1200kg
CH-2500V
W3
2500L
1200L
1200kg
0-99min
11kw
8r/min
3820*1100*3200mm
2040kg
CH-4000V
W4
4000L
1800L
1800kg
0-99min
15kw
6r/min
4600*1300*3500mm
2800kg
CH-6000V
W4
6000L
2500L
2500kg
0-99min
18.5kw
5r/min
5500*1300*4380mm
3200kg
