LTDG-Series CE Certified High Quality vacuum palm oil vacuum dryer

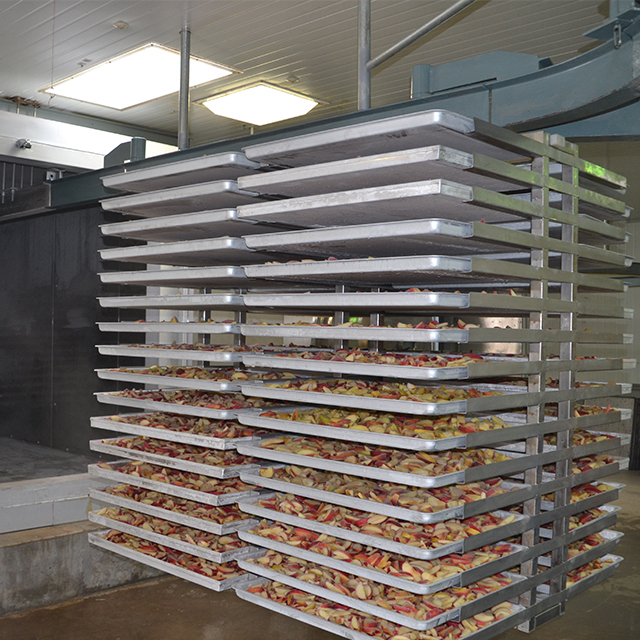

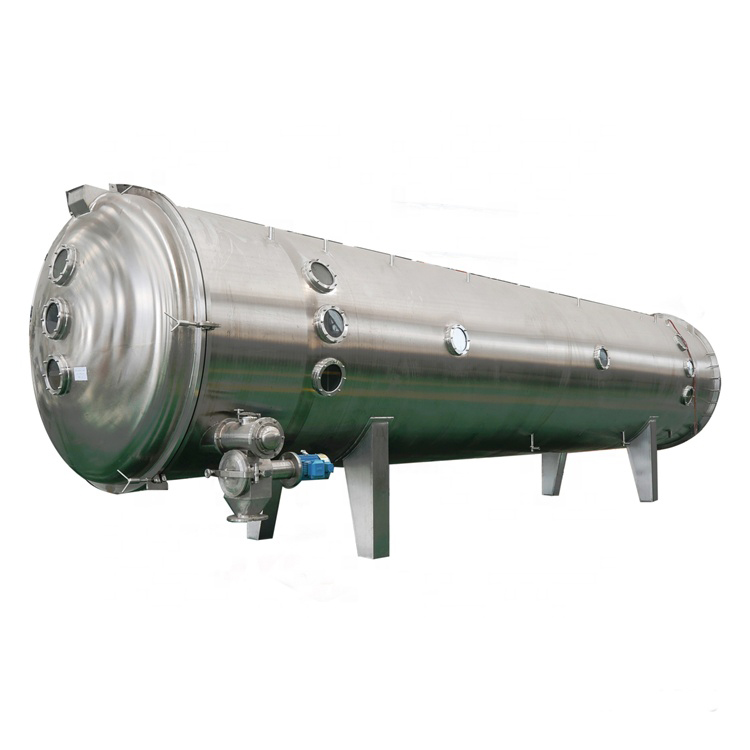

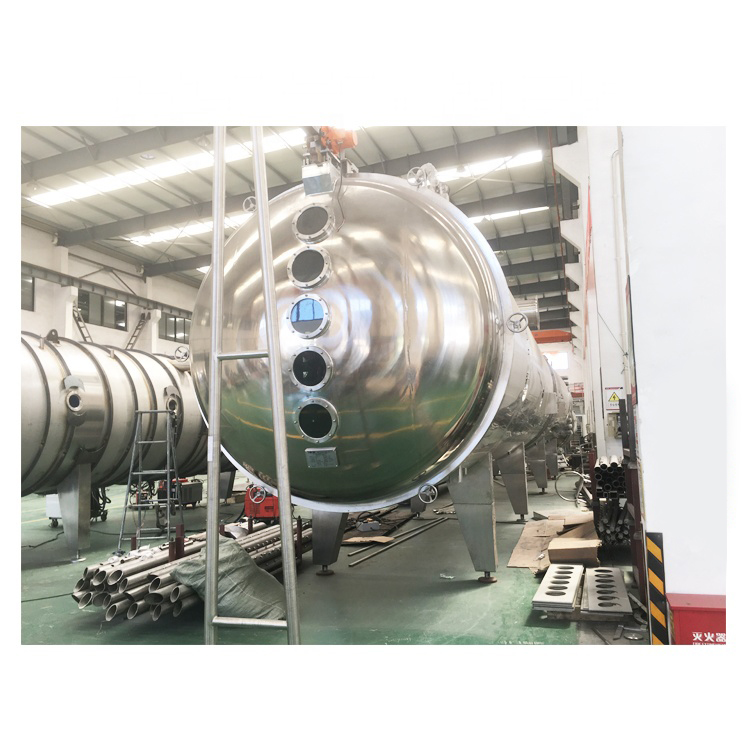

The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
The Dry case is designed according to vacuum vessel of international standard. Case shape is horizontal cylinder. Exterior has multitasked stiffener to strengthen. Test the vacuum air impermeability after welding. Silicone rubber is used to seal between the drying case and the case door. Sight glass with light is set on the door. Hanger rail is set on the drying case to take the products get in and out.
****Structure horizontal cylinder with stiffener Design standard vacuum vessel design
****Material: SUS or Q235A Leakage rate 25Pa×L/S (depend on Clients requirement)
|
Freeze Drying machine |
Unit |
Production for Batch |
||||||
|
LTDG-1 |
LTDG-50 |
LTDG-75 |
LTDG-100 |
|||||
|
Nominal Area |
m2 |
1 |
50 |
75 |
100 |
|||
|
Capacity |
Area of the heat shelf |
m2 |
1.08 |
59.9 |
89.9 |
110.1 |
||
|
Tray Area |
|
1.02 |
50.2 |
75.8 |
101 |
|||
|
Tray Size |
mm |
780*510*37 |
||||||
|
Pallet No.*Skip |
|
6pcs*1 |
64pcs*2 |
64pcs* |
64*4 |
|||
|
Total Volume Dehydration (Max |
Kg/batch |
15 |
1000 |
1500 |
2000 |
|||
|
Basic Parameter |
Heating Shelf |
Width |
mm |
540 |
||||
|
Length |
mm |
1630 |
3260 |
4890 |
6520 |
|||
|
Number |
|
17*2 |
||||||
|
Volume of Drying Library |
m |
2200*4760 |
2200*7390 |
2200*10020 |
2200*12650 |
|||
|
Heat Mode |
|
Radiation |
|
|
|
|||
|
Heating Shelf Space |
|
75 |
||||||
|
Heating Shelf Range |
°C |
Room Temperature-120°C |
||||||
|
Heating Shelf Cooling rate |
°C/min |
≥5°C/min |
||||||
|
Heating Shelf heating rate |
°C/min |
≥3°C/min |
||||||
|
Condenser Lowest Temperature |
°C |
≤-45°C |
||||||
|
System Lowest Pressure |
Pa |
≤13.3 |
||||||
|
Pumping Rate |
min |
10.01*105Pa-133Pa≤15min |
||||||
|
Basic Supply |
Cooling Water qty: ≤30°C, 0.15-0.2MPa |
m3/hr |
0.9 |
30 |
48 |
68 |
||
|
Total Power |
kw |
8 |
75 |
100 |
160 |
|||
|
Steam Consumption |
L/hr |
220(100) |
450(200) |
670(280) |
900(340) |
|||
|
Compressed air consumption:07-1.0Pa.0.9 |
L/hr |
0.45 |
||||||
|
Water Consumption: 50°C, 0.10-0.20MPa |
kg/batch |
5 |
10 |
10 |
15 |
|||
|
Nominal Area |
m2 |
1 |
50 |
75 |
100 |
|||
|
Matching Cold Storage |
Cooling Water qty: ≤30°C, 0.15-0.2Pa |
m3/hr |
0.9 |
8 |
10 |
13 |
||
|
Total Power |
kw |
8 |
12 |
19 |
23 |
|||
