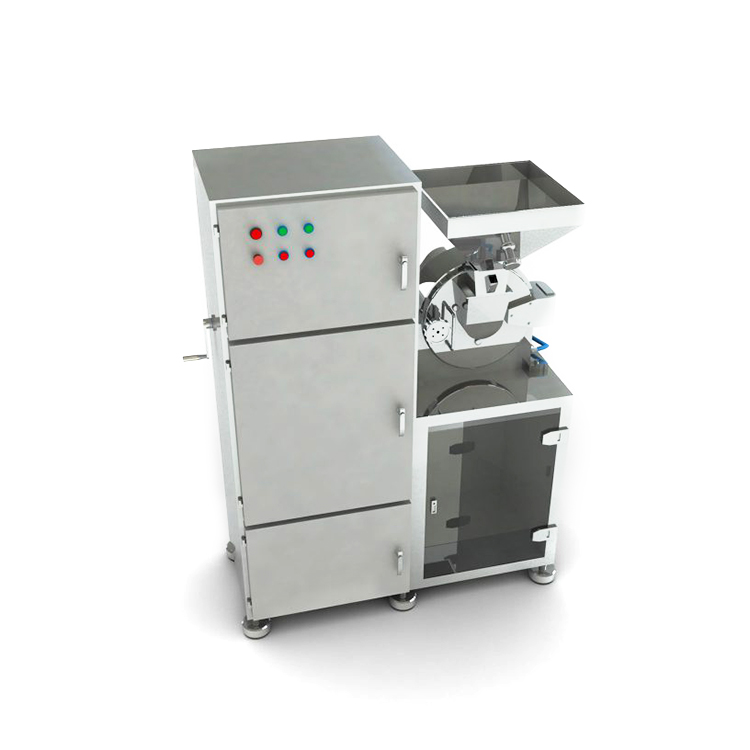

B Series Dust Collecting Crushing Set
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Main Application:
Applied for such trades as pharmaceutical, chemical and foodstuff ect., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material enters
into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and
wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the
international advanced level.
Model
Production Capacity
Feeding Size
Spindle speed
Crushing Fineness
Crushing Motor
Dust collecting motor
overall dimension(mm)
weight
10-50kg/h
6mm
6000
r/min
20-120mesh
2.2kw
0.55kw
950*450*1550
220kg
60-150kg/h
6mm
4500
r/min
20-120mesh
4kw
1.5kw
1120*600*1750
480kg
100-400kg/h
10mm
3800
r/min
20-120mesh
5.5kw
1.5kw
1250*660*1750
550kg
160-1000kg/h
12mm
3400
r/min
20-120mesh
11kw
1.5kw
1450*700*1750
680kg
