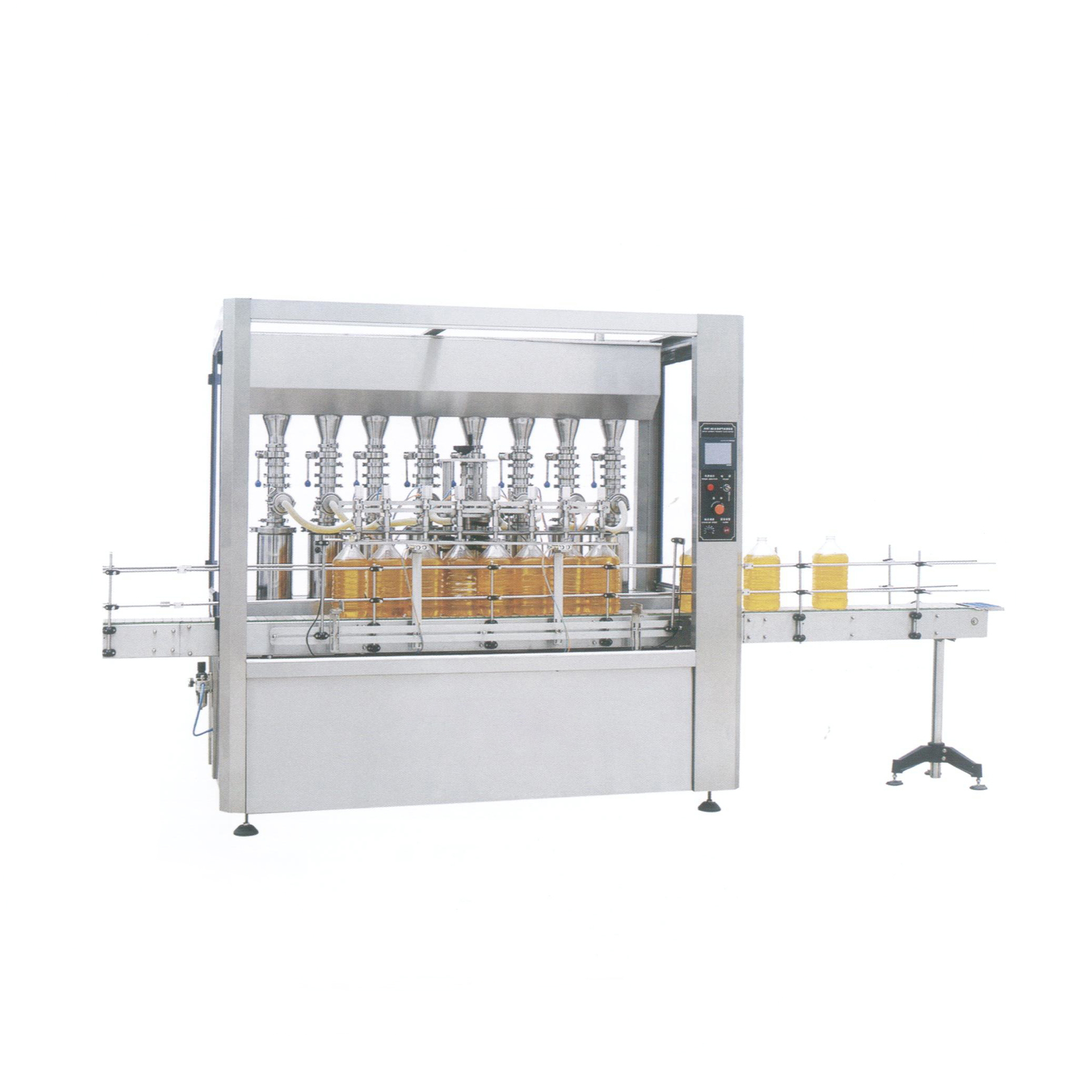

Feature

u Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds of liquid from light to medium heavy

u Pneumatic control piston pump, easy adjust filling volume

u Top liquid hopper application, with auto level sensor to control stuff supply and stop

u Auto shut on/off filling nozzle, prevent drop while filling

u Convenient to take out componet parts to clean and sterilize, adjust to fit to other bottle size with no change parts

u Frequency inverter speed control, no bottle no fill intelligence

u All electrical elements adopt Mitsubishi, Schneider brand

u Whole machine designed and manufactured accordance to GMP regulation

Main technical parameter

u Option filling volume:50-5000ml

u Filling head:4,8,12

u Filling precision:≤±1%

u Request air pressure:≤0.4-0.6MPa

u Air consumption:15m³/h

u Power:220V 50Hz

u Power output:≤1.2Kw

u Machine noise:≤50dB

u Net weight:≤1000Kg

Production capacity (e.g.5000ml )

u 4 heads:≥15bpm

u 8 heads:≥30bpm

u 12 heads:≥50bpm
